Tractor Mounte Deep Tillage Subsoiler Combined with Disc Harrow for Agricultural Machines

Product Description

Product Description

Yucheng Xinyi Machinery Manufacturing Co., Ltd.
Product Technical Parameter
Name:Tractor Mounte Deep Tillage Subsoiler Combined with Disc Harrow for Agricultural MachinesDeep tillage combined with land preparation machine series hydraulic offset heavy duty disc harrow has the high working efficiency , strong capability into the soil, and after plough loosen soil. This harrow can highly adapt to the sticky heavy soil, uncultivated field and those plots of many weeds. It is made of square tubes welded together which ensures simple structure and good rigidity. The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of the harrow is dramatically improved.
Product Parameters:

Product model:	4 plow + 4 rotary tiller 427
Total weight:	1670kg
Machine size:	3.9m*3.87m*1.47m
Tillage width:	3450mm
Number of deep tillage shovels:	11
Spacing of deep tillage shovels:	640mm
Number of rake blades:	32 notched disc knives 4 disc knives
Diameter of rake blades:	460mm
Thickness of rake blades:	4mm
Spacing of rake blades:	195mm
Deep tillage:	35-45cm
Main beam:	100mm*100mm*8mm
Supporting power:	Four-wheel tractor with more than 200 horsepower
Working mode:	Three-point suspension

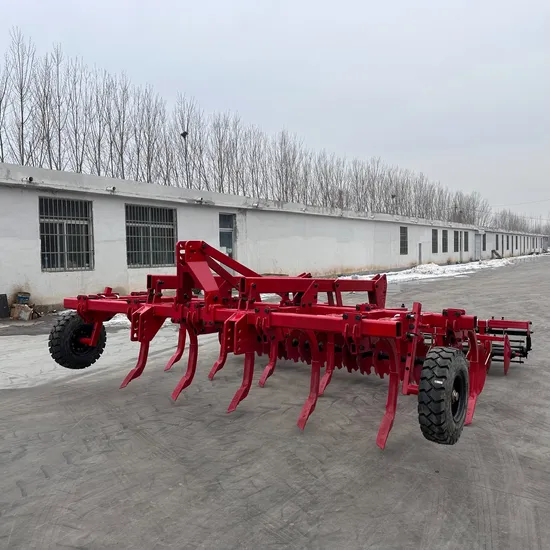

Detailed Photos
Packaging & Shipping
Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers. Company Profile
Our Company :

Business type	Manufacture
Location	Yucheng, Shandong,China
Year Established	2005
Occupied area	50 Acres
Company certification	CE, ISO9001
Main product	Disc harrow, disc plough, trailer, boom sprayer , rotary tillers, potato planter plowing blade, plough blade, soil-loosening shovel and so on. Wif good quality, excellent performance, our products annually export to countries around the world, and we has gained the majority of customers trust.
