Product Description
Product Description

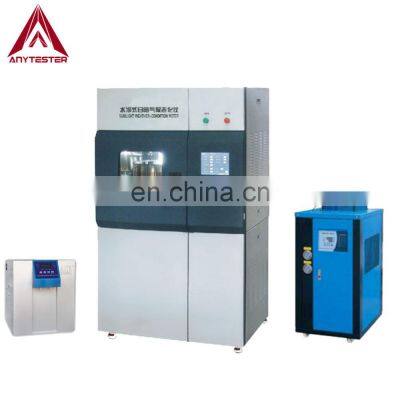

Product DescriptionHY4410 Water-cooled Weather Conditions Meter is suit to determine the color fastness and aging to sunlight, weather resistance, compound color fastness to sunlight-sweat of colored textile, leather, leatherette, plastic, etc, by setting various parameters of irradiance, temperature, humidity, spray to simulate natural condition in lab. Be able to control irradiance real-time, automatically inspect and compensate irradiance, temperature, humidity.SpecificationModelHY4410Lamp power SupplyAC380V±5% 50Hz 9000W(Max)Irradiation Source:4500W Water-cooled Long Xenon Arc LampLamp Life1500 hoursRack Rotating Speed1-4r/minRack Outside Radius224mm (Centered on the Xenon-arc Lamp)Specimen Holder Exposure Area:180×35mm（ISO） 190×50mm（AATCC）Specimen Number27 pcs（ISO）; 18pcs（AATCC）(Max)Exposure Area of Specimen≥2800Illumination cycle adjustable0~9999h59min, ±1sSpray cycle adjustable0~9999h59min, ±1sEach specimen adjustable timing0~9999h59min, ±1sChamber Temperature Range25℃～80℃±2℃BPTRT+10℃～120℃±2℃BSTRT+10℃～130℃±1℃Humidity RangeLight Cycle：10％RH～85％RH ±5% RHDark Cycle：10％RH～98％RH ± 5% RHIrradiance rangeWide Bandwidth: (35～150)±1W/m2@300-400nmNarrow Bandwidth: (0.800～3.000)±0.02W/m2 @420nmOr specified by the custom with 340nm, 300~800nmDI water Container5000mLFloor Space1500×3000mm (Min)Power SupplyAC380V±5% 50Hz 9000W(Max)Dimensions1200×870×2000mm（L×W×H）Instrument Weight400kgDetails & Features★Presetting various specifications, or customized programs, meet diverse range of standards, including AATCC, ISO, BS, JIS etc;★Touch screen, and build-in PLC, real-time display the ongoing test’s graph, be able to presetting irradiance, temperature, humidity, and plot dynamic curve of them;★KincoTM touch screen, and build-in PLC (KincoTM), real-time display the ongoing test’s graph, be able to presetting irradiance, temperature, humidity, and plot dynamic curve of them.★4500W water-cooled xenon arc lamp system, accurately simulate sunlight spectrum. Irradiance auto- compensates system, control irradiance, temperature, and humidity timely through a closed loop.★Irradiation control, light irradiance sensor monitor, digital setting, automatic compensating system, stepless irradiation regulation.★Accurate chamber temperature control, irradiation temperature, and heater raise the temperature, air conditioning refrigeration system.★Ultrasonic humidification system makes spray water even and low noise. Saturated steam humidifying, industrial refrigerating machine dehumidifying, and close loop control the humidity.★Large amount of testing specimen, be able to hold as 3 times of specimen quantity as air-cooled machine in a test.★Custom program capability and storage for additional user-defined tests.★De-ionized water system to ensure purity of cooling water and spray water.★Each specimen holder has time recorder respectively. Ease to test different specimen in one test.★Multi-point inspection: malfunction alarm, self-diagnostic function, ease to maintenance.★Print the test result chart by stylus printer directly. No need support of PC.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1400*900*1600mmWeight200kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
