Single Slide Plate Type Double Working Station Screen Changer for Plastic Recycling Granulating Extruder

Product Description

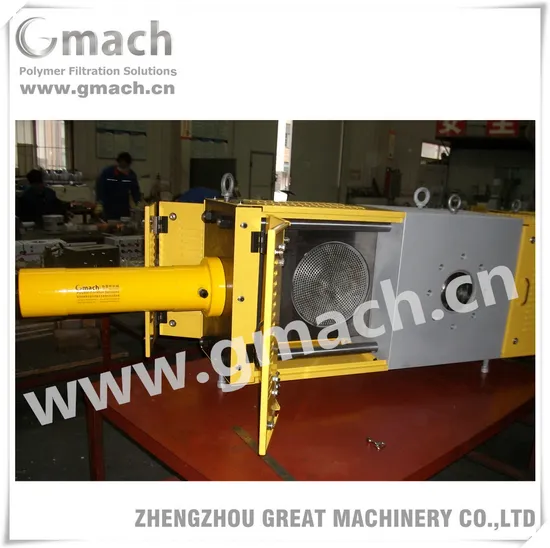

Single Slide Plate Type Double Working Station Screen Changer for Plastic Recycling Granulating Extruder
This GM-SP-R series of single pillar double working station screen changer is simillar with the GM-SSP series of single plate type double working station screen changer.
1)This GM-SP-R series of single pillar double working station screen changer is designed to maintain constant pressure during the polymer processing.
2)This type of screen changer is made of high-performance steel(38CrMoAl),
special processing and heat treatment methods(nitriding treatment) for improved reliability and durability(Hardness of nitration:950-1050Hv)
3)Two filters work alternately for quick screen changing operations.
Advantages
1) the screen pack is installed on a slide piston but not a slide plate.The slide piston structure enhance the pressure resistant , thus this kind of screen changer can be applied for some high pressure extrusion lines.
2) It work well under the high temperature of 400ºC and high pressure of 40Mpa-50Mpa.
3) Automatic air bleeding system, do not interrupt the production.
Application fields
Blown film and cast film (Bubble pack, Medical, Food Wrap)
Sheet (Foam, Strapping, Plastic cardboard)
Coating (Hot melt adhesive)
Pipe ( Corrugated, Gas Pipe) and profile
Compounding (Master batch, filler)
Wire and cable extrusion
Fibers ( Monofilament)
Tubing (Medical, Industrial, Irrigation)
Pelletizing (strands and underwater)

Type	Screen D&A		D( mm ) overall dimension				H eating power ( KW ))	Output ( kg/h )
	(mm)	( CM² )	L	W	H	L1
GM_ SP - R-80	Φ 60	28	180	170	170	700	2.0/3.0	30-180
GM _ SP - R-100	Φ 80	50	220	200	200	810	3.0/4.2	80-280
GM _ SP - R-120	Φ 100	78	250	220	220	970	4.2/6.2	220-480
GM _ SP - R-155	Φ 130	133	320	220	220	1100	6.0/8.2	300-700
GM _ SP - R-170	Φ 145	165	370	310	310	1320	7.4/9.5	400-1100
GM_ SP - R-195	Φ 165	214	400	380	380	1470	8.5/10.8	650-1500
GM _ SP - R-220	Φ 180	254	440	410	410	1620	9.6/12.5	800-1800
:,. Note: The specifications are subject to change without prior notice.

---
