Automatic Gate RFID Parking Boom Barrier Gate for Remote Control

Product Description

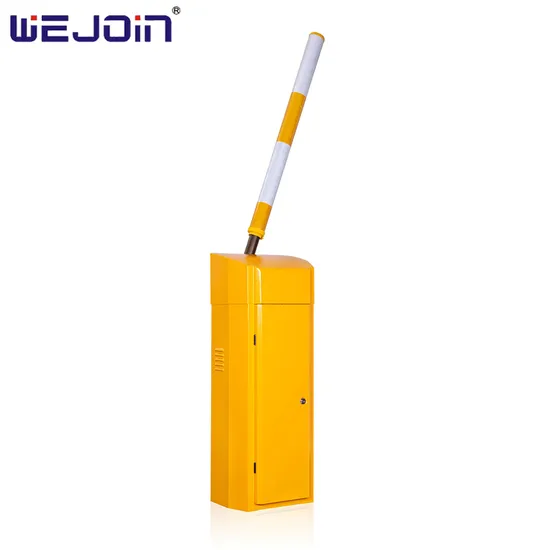

WEJOIN Commercial Servo Barrier Gate (WJCB02)
Product Description
Functions & Features
1.DC permanent magnet synchronous motor(PMSM),servo control.
2.Superior performance,equivalent to the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat and low noise.
3.Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4.Electronic clutch design: more convenient to unclck or lock the motor when power off.(patented technology)
5. Three tension spring crank transmission design, for more stable and reliable structure.(patented technology)
6.No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7.More sensitive and reacting faster when reversing on obstacles.
8.With counting, delay auto-closing, auto-aging test, alarm when lifting boom without permission, motorcade passing function.
9.LCD display controller, more humanized operation and setting.
10.NO/NC wire control signal input are optional.
11.Integrated RS485 communcation, RJ45 network, infrared photocell, loop detector interface, radar module and more secondary development.

Technical Data

Model	WJCB02E	WJCB02H					WJCB02I
Running Speed	0.4S~0.9s	0.9s~5s	5s	5s	5s	5s	3s~5s	5s	5s	5s	5s
Boom Type	Carbon Steel Straight	Straight	90° Folding	180° Folding	2 Fence	3 Fence	Straight	90° Floding	180° Folding	2 Fence	3 Fence
Max Boom Length	2m~3.5m	3.5m~6m	5m	4m	4.5m	4m	4.5m~8m	6m	5m	6m	5m
Input Voltage	AC 220V±10%, AC110V
Motor Voltage	DC310V
Enclosure Rating	IP54
Working Temperature	-35°C~+85°C
MTBF	10000000 times
Duty Cycle	100%
Traffic Flow Application	24 hours uninterrupted operation
Max Motor Power	300W
Max Motor Speed	90r/min
Max Torque	480N.m

WEJOIN Commercial Servo Barrier Gate WJCB02 DC blushless servo motor with frequency conversion control,
allows for a smooth travel of the gate arm with no bounce in the end position.
Boom type selection
Machine Core and Controller
Optional Accessories

---
