Mechnical soil compactor, Soil compaction machine

Product Details

Product Description

Product Description

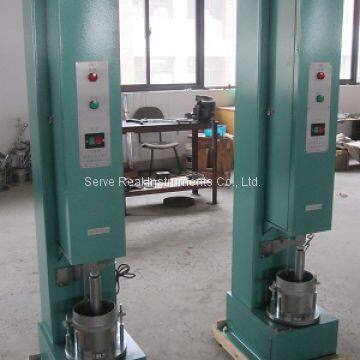

This soil compaction equipment is used to make CBR and rebound modulus specimen in laboratory, digital display counter, key parts are made in mold punching process, highly improves the stability. Features automatic control of compaction process. Easy operation, uniform compaction, good specimen forming.

Specifications 　

Spec.	Standard 1	Standard 2
Heavy compaction test	Rammer weight 4.5kg, fall height 457mm, compaction mold size Φ152x116mm, collar size 152x50mm	Rammer weight 4.5kg, fall height 450mm, compaction mold size 152x170mm, collar size 152x50mm
Light compaction test	Rammer weight 2.5kg, fall height 305mm, compaction mold size Φ102x116mm, 152x50mm, collar size 102x50mm	Rammer weight 2.5kg, fall height 300mm, compaction mold size Φ100x127mm, collar size 100x50mm
Rammer diameter	Φ51mm	Φ50mm
Compaction times	30times/min 30times/min
Power supply	AC 220V, 50HZ

Accessories list

Item	TDJS-1A (Standard 1)		TDJS-1B (Standard 2)
	Spec.	Qty	Spec.	Qty
4.5Kg rammer	Φ51mm fan-shaped	1pc	Φ50mm	1pc
			Φ50mm fan-shaped	1pc
2.5Kg rammer	Φ51mm	1pc	Φ50mm	1pc
Compaction mold	Φ152x116mm	1pc	Φ152x170mm	1pc
	Φ102x116mm	1pc	Φ100x127mm	1pc
Collar	Φ152 x 50mm	1pc	Φ152 x 50mm	1pc
	Φ102 x 50mm	1pc	Φ100 x 50mm	1pc
Pad	/	/	Φ150 x 50mm	1pc
Column pull rod		1set		Long & short 1ea
Lining ring		1pc		1pc
Chain hook		3pcs		3pcs
Shovel, spanner		1ea		1ea

---
