Ceramic Lined Ball Mill, High Alumina Lined Ball Mill, Ball Mill for Enamel Ceramic Raw Materials

Product Description

Product Description

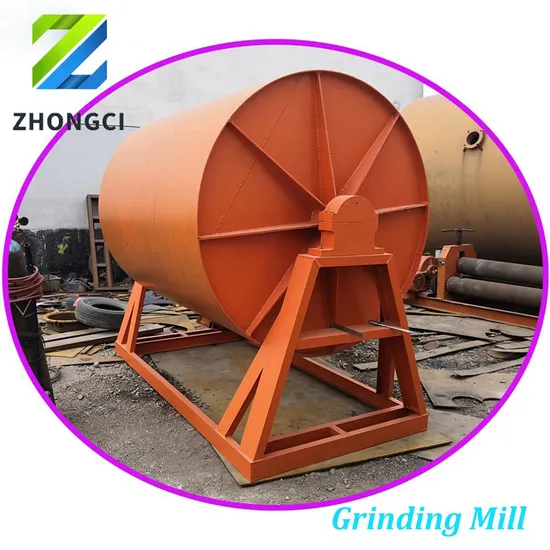

Ceramic lined ball mill, high alumina lined ball mill, ball mill for enamel ceramic raw materials

Horizontal ball mill, laboratory ball mill, intermittent ball mill
Product Introduction: The horizontal ball mill produced by our company has strong adaptability, wide applications, reliable and stable performance, and long service life
Belonging to high-end grinding equipment with low energy consumption, high output, simple operation, and convenient use.
Working principle: The output shaft of the reducer directly drives the ball mill cylinder to rotate through the coupling. The high-speed rotating cylinder suspends the grinding ball and material in the liquid inside the cylinder, and the grinding ball quickly grinds the material.
Performance characteristics: Different grinding media are selected according to different materials. The mixing drum can also be processed into carbon steel, stainless steel, or lined with wear-resistant polyurethane or alumina to ensure material purity. Low power consumption, no vibration troubles, wide product particle size distribution, high crushing efficiency, suitable for ultrafine grinding of liquid-solid phase materials, especially suitable for processing high-purity materials. It can be widely used in industries such as electronic materials, magnetic materials, ceramic glazes, enamel glazes, rare earths, diatomaceous earth, ink pigments, food, pharmaceuticals, etc.
This device has been continuously improved by our company for many years, with mature technology that saves energy and increases efficiency, and has received high praise from a wide range of users.
Product Parameters
Main technological parameters of ball mill

Specification	Cylinder size (mm)	Output size (mm)	Weight of loading (t)	Speed of bucket (r/min)	Power (kw)	Piece Weight (kg)
0.2T	Φ910×1120	0.075-0.89	0.2	35	2.2	1910
0.5T	Φ1200×1420	0.075-0.4	0.5	31.45	4	2500
1T	Φ1400×1800	0.075-0.4	1	27	7.5	3000
1.5T	Φ1800×2100	0.075-0.4	1.5	23	11	4500
2.5T	Φ2200×2200	0.075-0.4	2.5	20	18.5	6500
3T	Φ2200×2600	0.075-0.4	3	20	22	7000
5T	Φ2500×3000	0.047-0.4	5	16	37	13000
8T	Φ2800×3400	0.047-0.4	8	13.8	45	19000
10T	Φ2800×4000	0.047-0.4	10	13.8	55	20000
15T	Φ3000×5000	0.047-0.4	15	13	75	28000
18T	Φ3100×5000	0.047-0.4	18	12	90	28500
20T	Φ3200×5800	0.047-0.4	20	13	90	29900
30T	Φ3400×6500	0.047-0.4	30	14.2	110	32000
40T	Φ3600×7000	0.047-0.4	40	13	132	36000
50T	Φ3800×8000	0.047-0.4	50	11	200	45000
60T	Φ4000×8500	0.047-0.4	60	10	200	52000

Application

Application:
Batch Ball Mill is mainly used for grinding materials in such production industries as cement, silicate product, new building materials, chemical engineering, nonferrous and black metal, mineral processing, glass and ceramic, etc. It is used for grinding various ore and other grindable materials dry or wet.
