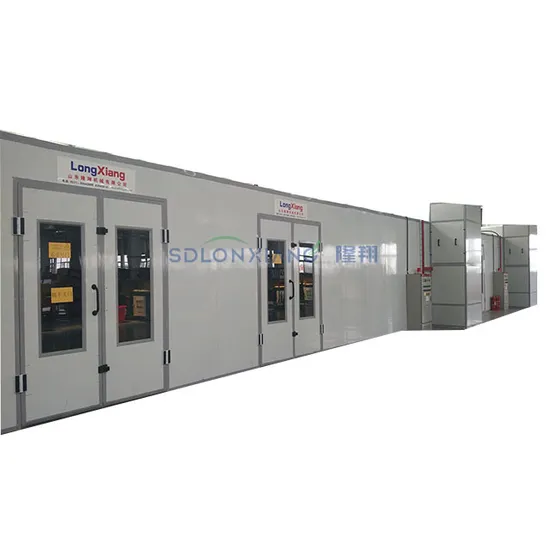

Furniture Spray Paint-Baking Room with Infrared Heater for Sale

Product Description

furniture spray paint-baking room with infrared heater for sale Product Description

Item Model	LX-100
Outside dimension(mm)	20000×5000×3200mm(L×W×H)
Painting room dimension(mm)	4900×4900mm(L×W)
Drying room dimension(mm)	14950×4900mm(L×W)
Incoming door dimension(mm)	1900*2200mm(W×H)
Delivery door dimension(mm)	1900*2200mm(W×H)
Wall panels	EPS with double-ply plate,tongue and groove construction,thickness:50/75mm
Lighting	Painting room:6 units×3=18 units×16W LED lamp Baking room:12 pieces×16W LED lamp
Inlet fan	2×4KW double-intake centrifugal fans,air capacity:24000m³/h
Outlet fan	1×7.5KW double-intake centrifugal fan,air capacity:18000m³/h
Heating system	30pieces × 1KW carbon fiber far-infrared heater,anti-explosion
Filter system	Intake air:Pre-filter,high efficiency filter(ceiling filter) Exhaust air:water curtain filtering
Control system	Lighting switch,spraying,baking temperature,time setting,emergency stop,temperature controller,power supply
Total power	45KW

Detailed Photos

OUR SERVICES
1. LONGXIANG supports 24 hours online service , perfect after sales service system.
2.LONGXIANG provides short delivery time within 1 week.
3.Engineers available to serve machinery overseas.
4.LONGXIANG support 12-month warranty and will help to maintain it all life long.
Process
A) Non-welded CNC machining process is applied in more than 90% of spare parts to ensure the elegant appearance and excellence performance.

B) More than 10 years of intact use can be reached by strength of materials, perfect surface treatments and strict applicance of raw materials.

C) PU-perfusion technology is applied in main door for high strength and smooth surface.

D) Work process control by integrated circuit ensures more stable function.
Certifications

Our Advantages

Packaging & Shipping

---
