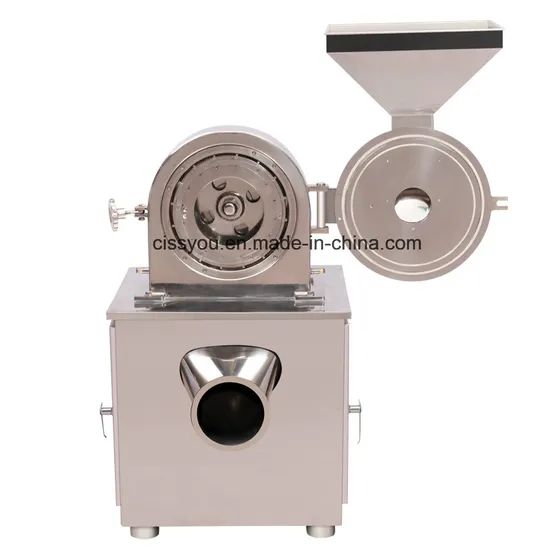

Stainless Steel Food Corn Grain Grinder Flour Grinding Machine

Product Description

Stainless steel food tobacco grinder ginger powder grinding machine
Application:
This machine is applicable to the pharmaceutical, food, chemical industry, metallurgy, geology, agriculture, scientific research units, such as many varieties of Chinese herbal medicine, precious medicinal materials, ore crushing process, chemical raw materials
1. Working Method
(1) The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and crush the target materials.
(2) The size of granules can be achieved by changing of the screen.
2. Introduction
(1) The machine has the fea-tures of easy structure. Solid, stable running and good efficiency.
(2) The crushed ma-terial is discharged directly from the grinding chamber of the main frame.
(3) In addi-tion, the whole machine is, made of stainless steel, with smooth inside walls to and avoid powder accumulation on the inside walls.
(4) The machine are in accordance with national require-ment, achieving "GMP" standard.
We can help design any mode for you like: Fluted disc, pin mode, turbo mode, air cooled, hammer mode, sieve of different sizes, and different capacity.
Notes:
1,According to your different material and also the mesh you want to crusher,the more fine powder you crush,the less capacity,hope you can understand.
2,For example,if you want to get 120mesh powder,the capacity will be 120kg\hour,if you want to get 12mesh powder,the capacity will be 1500kg\h.

Model	WSBX-20	WSBX-30	WSBX-40	WSBX-60
Capacity(kg/h)	30-150	50-300	80-800	120-1500
Speed of principal axis(r/min)	4500	3800	3400	2600
Size of input granules(mm)	< 6	< 10	< 12	< 15
Fineness of products (mesh)	12-120	12-120	12-120	12-120
Power(kw)	4	5.5	7.5	15
Weight(kg)	250	320	450	600
Overall size (L× W× H) (mm)	550× 600 × 1250	600× 750 × 1450	750× 900 × 1550	950× 1000 × 1850

---
