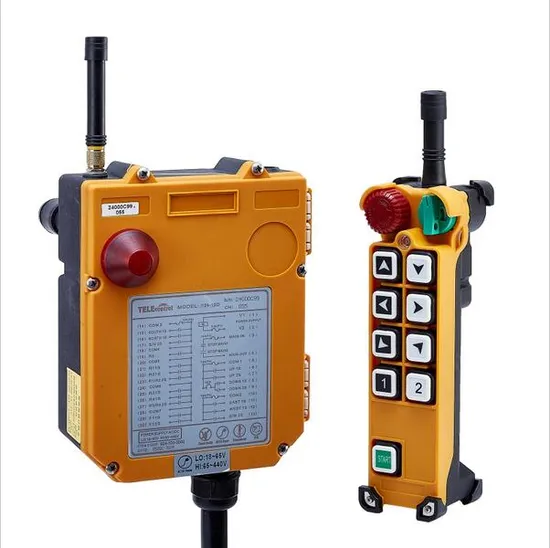

| F24-8S Transmitter Parameters | |||||||
| Material | Glass-Fiber PA | ||||||
| Enclosure protection class | IP65 | ||||||
| Frequency range | UHF: 425-446 MHz | ||||||
| Transmitter power | ≤10dBm | ||||||
| Transmitter power supply | 2 AA alkaline batteries (not included) | ||||||
| Safety code | 32 bits (4.3billion) | ||||||
| Temperature range | -40ºC-+85ºC | ||||||
| Control distance | up to 100 meters (it is available to customized long distance up to 200m) | ||||||
| Size | 186x61x51mm | ||||||
| Weight | 280g (without battery) | ||||||
| F24-8S Receiver Parameters | |||||||
| Material | Glass-Fiber PA | ||||||
| Enclosure protection class | IP65 | ||||||
| Frequency range | MHz; UHF: 425-446 MHz | ||||||
| Receiver sensitivity | -110dBm | ||||||
| Receiver power supply | 18~440V AC/DC (optional) | ||||||
| Safety code | 32 bits (4.3billion) | ||||||
| Temperature range | -40ºC-+85ºC | ||||||
| Cable length | 1.65m (Other length can be customized) | ||||||
| Output contactor capacity | 8A sealed relay output (with AC 250V/10A relays, 10A fuse) | ||||||
| Size | 210x162x107mm | ||||||
| Weight | 1220g | ||||||
