High-Performance Supercharged Water Filtration System with Automatic Flushing, Electronic Control, Ultrafiltration & UV Lamp for Large-Scale Water Treatment

Product Description

Product DescriptionBoasting multi-stage filtration and sterilization capabilities, the VLLRO all-in-one water supply system with single/double filtration effectively purifies water by removing impurities like sediment, colloidal particles, and harmful microorganisms including bacteria and cysts. Coupled with modern technology for smart control of water pressure and automatic water supply, it establishes a comprehensive, self-sufficient, and clean tap water system.The VLLRO Sand & Charcoal Booster Water Supply Unit, with its single and double filtration capabilities, effectively purifies underground well water into clean, potable water, delivering an abundant supply at a rapid pace.For added safety, the VLLRO Sand & Charcoal Pressure Boosting Water System upgraded water pipes made of Huaya PVC-U, a material of chemical-grade quality that exceeds drinking water standards.

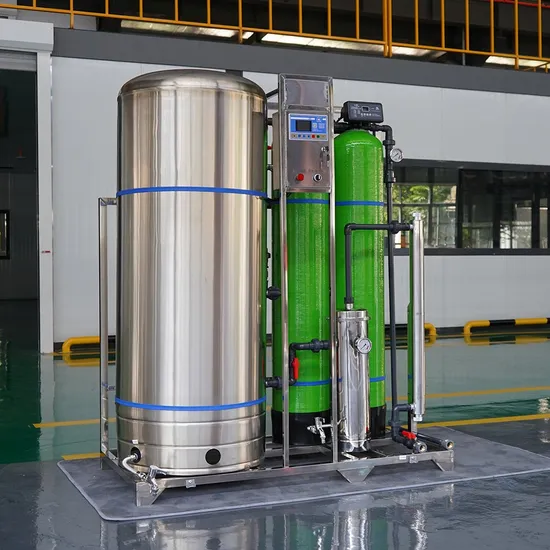

Quick & Easy Installation Coupled with Simple Maintenance: Comprehensive installation guidelines are provided to make the setup process seamless for users. Additionally, the compact and user-friendly design of the equipment simplifies maintenance tasks, reducing future maintenance expenses.Detailed PhotosThe VLLRO Sand & Charcoal Pressure Boosting Water System has upgraded its water supply pipes to Huaya PVC-U of chemical-grade quality, surpassing even drinking water standards for enhanced safety and security.
The incorporation of a fully automated filtration and cleaning control valve head facilitates automatic filtration operations and both directional cleaning procedures, effectively prolonging the lifespan of filters and minimizing human intervention for maintenance purposes.Equipped with multi-stage filtration and sterilization, the VLLRO Sand & Charcoal Booster Water Supply Unit effectively eliminates sediment, colloidal particles, bacteria, cysts, and other microorganisms. Coupled with modern smart technology for pressure-boosted water supply, it establishes a fully automated, clean tap water supply system.
Product Parameters

Supercharged filter integrated machine [Automatic flushing + electronic control + ultrafiltration filter +UV lamp ]
Tank specification	Tank thickness	Tank flow	Consumable type	Consumable weight /kg	Ultrafiltration flow	Control mode	size/cm	Nozzle size
260L	1.5mm	0.5-0.8T/H	Sand + Carbon	Sand 38+ carbon 12	3m³	Automatic/electronic control	120x52x141	Filter tank nozzleDN20 Water outletDN20 Sewage outletDN15 Flushing portDN20
300L	1.5mm	0.5-0.8T/H	Sand + Carbon	Sand 38+ carbon 12	3m³	Automatic/electronic control	120x52x161
450L	1.5mm	1.0-1.5T/H	Sand + Carbon	Sand 68+ carbon 25	5m³	Automatic/electronic control	135x64x165
550L	1.5mm	1.0-1.5T/H	Sand + Carbon	Sand 68+ carbon 25	5m³	Automatic/electronic control	135x64x192

Our Advantages
Our factory is well-equipped with a comprehensive array of processing machinery, including rolling mills, straight seam welding machines, stamping presses, bending presses, shearing machines, laser cutters, and pipe cutting machines, enabling us to execute a seamless production line from raw material preparation to final processing and hydraulic testing.
User-Friendly Installation & Maintenance Simplicity: Our detailed installation instructions empower users to install the system with minimal effort. Moreover, the equipment's compact build and straightforward maintenance procedures contribute to minimizing long-term maintenance costs.
Packaging & ShippingVLLRO ensures the safe and secure shipping of our products by utilizing specialized, custom-designed wooden boxes for packaging. These boxes are crafted to meet international standards, providing excellent protection during transit. Our dedicated logistics team handles all aspects of the shipping process, ensuring that each order is carefully packed and efficiently dispatched to any destination worldwide. Whether you're located in Asia, Europe, North America, or beyond, VLLRO guarantees that your products will arrive safely and on time, ready for immediate use. We also offer customizable packaging options to meet the specific requirements of your order, ensuring that all products are handled with the utmost care, regardless of destination.
FAQ's1. What is the filtration capacity of the Supercharged Water Filtration System?
- The filtration capacity varies based on the model:
- 260L: 0.5-0.8T/H
- 300L: 0.5-0.8T/H
- 450L: 1.0-1.5T/H
- 550L: 1.0-1.5T/H
This allows the system to efficiently handle varying water treatment demands.
2. What type of consumables are used in this filtration system?
- The system uses a combination of sand and carbon as its consumables. The weights for each type are:
- Sand: 38-68 kg
- Carbon: 12-25 kg
These materials ensure effective filtration and a longer lifespan for the system.
3. How does the automatic flushing feature work?
- The system is equipped with an automatic flushing mechanism that helps maintain the filters by clearing any accumulated debris. This reduces manual maintenance and ensures consistent performance.
4. What control modes are available for this system?
- The system offers both automatic and electronic control modes, providing ease of operation and flexibility for different user needs. The system can be set to automatically adjust based on water flow and demand.
5. What is the size and design of the filtration system?
- The system comes in four different sizes to accommodate various needs:
- 260L: 12052141 cm
- 300L: 12052161 cm
- 450L: 13564165 cm
- 550L: 13564192 cm
These compact designs make the system suitable for both commercial and industrial applications.
6. What is the function of the UV lamp in this system?
- The UV lamp helps to disinfect the water by neutralizing bacteria, viruses, and other pathogens. This additional layer of purification ensures that the water is safe for use.
7. What is the water inlet and outlet size for this system?
- The system is equipped with DN20 nozzles for the filter tank and water outlet, and DN15 for the sewage outlet, allowing for efficient water flow and drainage.
8. How does the ultrafiltration flow work in this system?
- The ultrafiltration system provides 3-5 m³ per hour of filtration, ensuring that fine particles and contaminants are effectively removed before the water undergoes further treatment stages.
9. Can this filtration system be used in different environments?
- Yes, the system is designed for both commercial and industrial use, making it suitable for a wide range of applications such as drinking water purification, food processing, and wastewater treatment.
10. What is the maintenance schedule for this filtration system?
- Regular maintenance involves replacing consumables like sand and carbon and periodic UV lamp checks. The automatic flushing feature also reduces the need for frequent maintenance, but a standard inspection every 3-6 months is recommended.
11. How long does the system last?
- With proper maintenance, the system can operate efficiently for many years. The quality materials used in the construction, such as 304 stainless steel for the frame, ensure a long lifespan and minimal corrosion.
12. Is this system energy-efficient?
- Yes, the system is designed to be energy-efficient, with features like automatic control and optimized flow rates, ensuring that energy consumption is minimized while maximizing performance.
13. What industries or sectors can benefit from this system?
- This water filtration system is ideal for a variety of sectors, including the food and beverage industry, hospitality, healthcare, agriculture, and large-scale water purification plants.
14. Can the system be customized for specific needs?
- Yes, we offer customization options for different flow rates, filter materials, and additional features based on specific customer requirements.
15. Is installation easy for this system?
- Yes, the system is designed for easy installation with a plug-and-play setup. The pre-assembled control cabinet and simple interface ensure that the system can be quickly integrated into existing water treatment setups.

---
