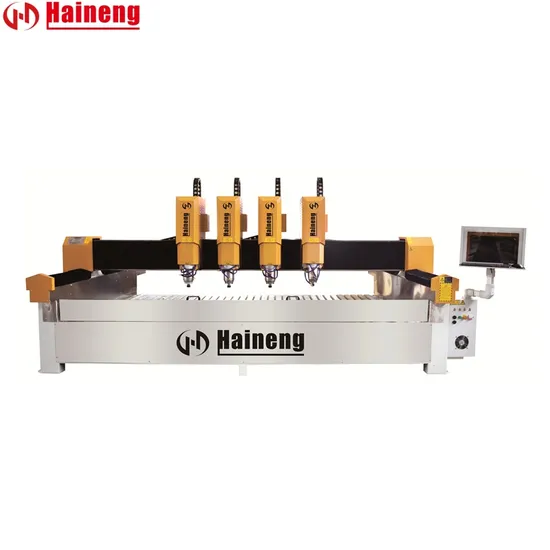

Four Head Stone Carving Machine CNC Marble Granite Engraving Machine for Monuments

Product Description

Product Description
Stone Engraving machine
Performance characteristics
The latest system, efficient, stable, economical and durable X, Y axis 30 guide rail, Y axis can be equipped with double guide rails All three axes are driven by AC servo motors Suitable for building materials, ancient buildings,tombstones,tea trays, etc.
Main Features
1) Adopt NcStudio CNC control system large color screen display, easy and simple to operate.
2) Break to rusume function. Continue carving from break point after power resuming from failure.
3) Compatible with Artcam JD Paint CAM software and other software programs.
4) High-performance new material motors and drivers can resist heat, shock and bad environment, ensure the working high speed and accuracy..
5) Professional vector control Inverter guarantee the variety working speed, smooth operation and make lower power consumption.
6) Aircraft-quality surface oxidized aluminum profile table which adding thicken PVC board, Enhancing the loading capacity of the platform.
7) Steel tube lathe bed, low center of gravity, strong bearing capacity, stable and long working life.
Product Parameters

TYPE	JDK3520-4
No.	Performance		Data
1	Working area	X	3000mm
		Y	2000mm
		Z (Feeding height)	250 (330) mm
2	Precision	Machining	0.05mm
		Repeatability	0.02mm
3	Structure	Table	Sink+ H Steel
		X,Y,Z Transmission	X,Y: H Helical Tack,Z:Screw
4	Speed	Max. Idle speed	30000mm/min
		Max. Working speed	X/Y:15000mm/min ;Z:5000mm/min
5	Spindle	Power	HD water cooled :380V 5.5KW
		Rotation speed	6000~24000r/min
6	Diver motor		Doling servo1.2KW
7	Working voltage		AC380V/50Hz
8	Command		NC Code
9	Control system		Weihong NK260
10	Vacuum system		No
11	Dust collection		No
12	Dimensions		3500mm×4500mm×2200mm
13	W		≈4500kg
14	G.W		≈5000kg

Processing

Packaging & Shipping

Partial Control Element
Company Profile
CertificationsExhibitionMarketing SystemCompany information
After Sales Service
1.Parts & Accessories Quick supply for needs
2.Troubleshooting by phone, e-mail, or WhatsApp/Wechat
3.Provide paper or electronic version of the product manual
FAQ
Q:what is the MOQ?A:1 set.Q:How's your machine's quality?A:We are a professional stone machine manufacturer more than 20 years, we've sold lots of machine at home and abroad. We will continuously provide new and old customers more and better services to help your business booming.
90% of our factory's machine are exported, including for the United States, Brazil, Russia,Algeria,Iran, Egypt, Morocco, Georgia, and other more than 10 major purchasers and for more than 20 Chinese trading companies OEM, and we also directly export too, the machines are exported to over 85 countries and regions.Q:What's the warranty time?A:The whole machine is guaranteed for one year, including electrical components and mechanical partsQ:Whether the machine can be customized according to our requirements?A:Customization available,Experienced techs for all your questions.
The factory owner is a mechanical engineer with more than 25 years of design and manufacturing experience. A variety of products have been customized for different customers in more than 20 countries.

---
