Saifan Woodworking Pallet Lumber Cutting Machine with Stacker Production Line

Product Description

Saifan Woodworking Pallet Lumber Cutting Machine with Stacker Production Line Product Description
Customized base on requirements, please send us your raw material length width thickness, finished cutting length, which finished length go to which place, the finished length collect manually or automatically, your space size.
Below some design sample for your reference .

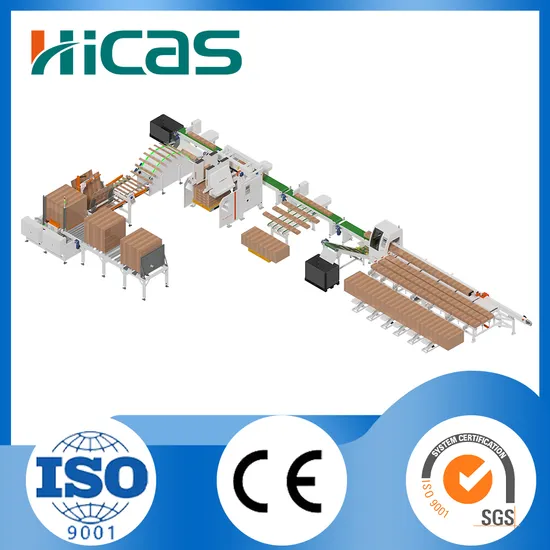

Automatic solid wood cutting conveyor line sorting machine

No.	Model	Name	Qty.	Notes
1	SF6060S	Automatic cutoff saw with automatic feeding system	1 set	Right feeding, if change to left feeding price increase 10%
2	SF8000T	Waste conveyor	1 set	610mm width
3	SF8012	Stacker	1 set	Length 850-2000mm
4		Waste collection box		Buyer prepare
5	SF8301	2m belt conveyor	2 set	500mm width
6	SF8301	3m belt conveyor	2 set	500mm width
7	SF8302	3m belt conveyor	1 set	800mm width
8	SF8401	Short stacker	2 set	Length 400-1200mm
9		Sorting head+stopper	3 set	No. 1 2 3 as right side picture
10		Electric control cabinet	1 set

(1)SF6060S automatic cross cut saw
This is automatic cross cut saw, cutting continuously and automatically with high precision ±1mm and high efficiency. Have program, can pre-set and edit and save cutting plans, and can decide which length go to which part of the line.

Model	SF6060S
Saw blade diameter	600*30mm
Feeding table length	6m
Out-feeding table length	1.2m
Cutting thickness	10-150mm
Cutting width	30-300mm
Cutting section Thickness*width	Max.150*280mm Max. 140*300mm
Feeding speed	0-50m/min
Pressing method	Cylinder, air pressure 0.6-0.8Mpa
Cutting tolerance	In +/-1mm
Cutter spindle rotation speed	2850rpm
Servo drive motor power	3kw
Feeding motor power	2.2kw
Cutting motor power	11kw
Total power	16.2kw
Voltage	380v 50hz 3phase
Dust collection port	150mm*2pc
Electrical components	Schneider
PLC Touching screen	Siemens
Machine space	10000*2500*1600mm
Weight	3300kg

(2)Wood Pallet Stacker
SF8010 stacker, stacks up to 8-12 layers per minute, one layer width 1.2m, height 1.1m, length is 1.5m or 2m. Mechanical stacker, loading weight about 1000kg.
With Drop Type Spacer Feeder 3pcs, can pre-set the spacer quantity and wood layer quantity easily.

Model	SF8010
Wood length	800-1500mm/2000mm
Wood width	50-200mm
Wood thickness	15-100mm
Spacer thickness	10-38mm
Spacer width	25-150mm
Spacer length	800-1200mm
Stack height	Max. 1100mm
Stack width	800-1200mm
Stack length	800-1500mm
Power	12kw
Voltage	380v 50hz 3phase
Air pressure	0.6-0.7MPA
Spacer feeder	3pc
Outfeeding table	4m length
Machine height	830-930mm
Machine space	8700*6700*2730
Machine weight	3750kg

Detailed Photos

Saw diameter 600mm	Cutting width 30-300mm	Cutting height 10-140mm
With powerful press, ensure smooth and fast clean cutting The saw power is 11 kw. The machine has a high temperature resistant multi-slip belt. The power transmission directly and powerful, the lifting of the saw blade is controlled by a cylinder and the cutting speed is adjustable.

Feeder system	Lifting conveyor
With automatic feeding table, saving labor intensity.	This lifting conveyor at last is for some short wood collection, buyer could put a box bin there.

Vertical waste conveyor	Belt conveyor
Transfer the wood waste to 1600mm height, then can fall to dustbin.	1.8m length rubber belt conveyor, 0.75kw, locate at the saw machine exit, wood length inside 150mm will fall to floor.

Sorting belt conveyor	Manual connection table
Rubber belt, length 3m, 0.75kw, with stopper can stop the wood, and then pneumatic sorting pusher push the wood to presetting place.	2m length, the space between is adjustable to work for different length of wood, manual connect the wood here. With small wheels inside, convenient for wood moving.

Stacker	Main parts brand
SF8010 stacker, stacks up to 8-12 layers per minute, one layer width 1.2m, height 1.1m, length is 1.5m or 2m. Mechanical stacker, loading weight about 1000kg. With Drop Type Spacer Feeder 3pcs, can pre-set the spacer quantity and wood layer quantity easily.	Electrical parts Schneider Screen PLC Siemens Inverter Delta Motor Chinese local brand Proximity switch: Pepperl+Fuchs Magnetic switch: AirTac Diffuse reflection: Banner

Related Products

SF1000	Wooden Pallet Production Line
SF2000	Wood Pallet Mat Nailing Machine
SF9022	Wood Pallet Legs Nailing Machine
SF9025	Stringer Wood Pallet Making Machine
SF9010	Stringer Wood Pallet Nailing Machine
SF9026	Stringer Wood Pallet Making Machine
SF7013	Double Heads Notcher
SF7030	Wood Pallet Chamfer Machine
SF7041	Pallet Round Corner Cutter Machine
SF6060	Wood Cross Cut Off Saw
SF6021	Wood Double Heads Trim Saw Machine
SF8005	Multi Heads Trim Saw

After Sales Service
1) Seller will send engineer (Chinese speaking, buyer prepare translator) to service in site, all cost in buyer's account (themachine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and insurance cost, hotel and eating responsible by buyer, and extra labor salary.
2) If travel abroad is impossible, then we will send you videos for installation and operation, and supply online guide from
WeChat/WhatsApp, some of our customers work the machines properly through this way. We have English videos for almost every machine, videos about the installation steps, operation steps, maintenance steps, most our customer use the machine succeed base on our videos.
3) Warranty
in 1 year since buyer receive the machine.
In warranty period seller will supply Free parts and online service exclude,
Easy wearing parts (saw blade, cutters, motor belt, small electric components).
Damage by wrong operation.
Out of warranty period seller supply paid parts, Lifelong responsibility.
And our Aftersales service team can supply free online support in 6 days per week, 10+ hours per day.
Below some pictures for your reference.
Company Profile
1) 20+ years experience in Chinese woodworking machinery market, we know the developing history, main manufacturers in each city, and international demands for Chinese machinery.2) 14 years exportation experience, have customers in more than 180 countries.3) Our engineer with 20+ years experience, familiar with woodworking machinery production, installation, operation, maintenance.4) To service our customer, we have a team not only a sales person, we have purchase department, engineer department, operation department, and aftersales service team (consist with our factory engineers).
5) And we are Gold Plus & Verified supplier.
6) We can realize Multi Products (machinery and spare parts) Purchase, Factory Testing, Products Testing, Batch Delivery and Aftersales Service etc., to save your time and money.
7) Our mission and target
Let Chinese woodworking machinery serve the whole world
Create maximum value for customer
Try to be the biggest woodworking machinery exporter in China.
7. Customer & feedbacks
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
9.We have many CE certifications, EPR certifications, ISO certification and product patents.
10.Our Packaging & Shipping
FAQ
1. Do you offer installation?
Video guidance and English manual can be provided freely, and we provide online support, now all our customers install and operate the machine by themselves with our online support.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.

3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.

4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.

5. Do you have any machines in our country?
Our machines have been sold to more than 200 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.

6. Can you customized the machine?
Our machines can be customized made according to buyers' request.

7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.

8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish.

---
