CE Pneumatic/Electric Glass/Panel/Sheet Metal/Slab/Steel/Marble/Granite/Stone Vacuum Suction/ Sucker/Sucking Cup Lifting/ Lift Equipment/Jib Crane/Crane Lifter

Product Description

Specification: (support customerized size)
Product Model : XDL-100B3M
Jib Column Size : 3300x219x6mm
Rokcer Beam Size: 4000x22mm
Suction Cup Equipment Size: 2000x1000mm
Cylinder Size: 1000x125mm
Color : Red/Orange/Blue/White etc
Working Area: 0~3200mm
Stroke Lifter: 1100mm
Rocker Arm Rotation: 0~270°
Max Steel Plate Size: 1500mm*3000mm/4000x2000mm(customerized size)
Application: Steel plate/aluminum plate/plastic plate/glass plate/stone plate/laminated particle board
Moving and Lifting

Pneumatic Tpye Vacuum Lifter
Model	Carne	Rocker Arm	Strok	Capacity	Max Workpieces	Air Pressure	Suction Pad (pcs/dia)
XDL-L100-B3M	3300mm	3000mm	100~1100mm	100kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L100-B4M	3300mm	4000mm	100~1100mm	100kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L300-B3M	3300mm	3000mm	100~1100mm	300kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L300-B4M	3300mm	4000mm	100~1100mm	300kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L500-B3M	3300mm	3000mm	100~1100mm	500kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L500-B4M	3300mm	4000mm	100~1100mm	500kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm

Product details

*High efficiency lifting
1.The pneumatic rocker arm loader is equivalent to the work of 6-8 workers.
2. Adopting the pneumatic power-assisted principle, only the control button is needed to complete the workpiece handling process.
* Short handling cycle:
1.When loading materials, the operator can control the movement of the bow and arrow in space with less force, and can stop at any position. The handling process is easy, fast and consistent.

Smooth operation, high stability, gas cut off protection, safety guarantee
1.When the air source is suddenly interrupted, the plate will remain in its original position for a period of time, making it easier for the operator to remove the plate.
Freely adjust the position of the suction cup combination to meet different sizes of work
Special suction cup made of imported materials, including integral tool hardware; professionally customized by our company, safe and reliable
Product Advantages
*SECURE
Damage-free gripping by using vacuum lifting.
*EASY TO USE
Simple operation, improve efficiency, Minimization of downtime due to employee injury.Increase in empioyee motivation, Only one person for handiing
*WIDE APPLICATIONS
Apply to fast and freguent lifting and moving ofworkpieces weighing to stone plate, class. metalaluminum,PVc plate, acric sheet and so on
*12 MONTHS
12months guaranteeall-round services
*MULTIPLE
Muitiple modes of energy supply plug-in and pneumatic suitable for most of the working environment
*MAX 500KG
Max capacity up to 500kg, can achieve most of light or heavy load workpieces loading and unloading tasks

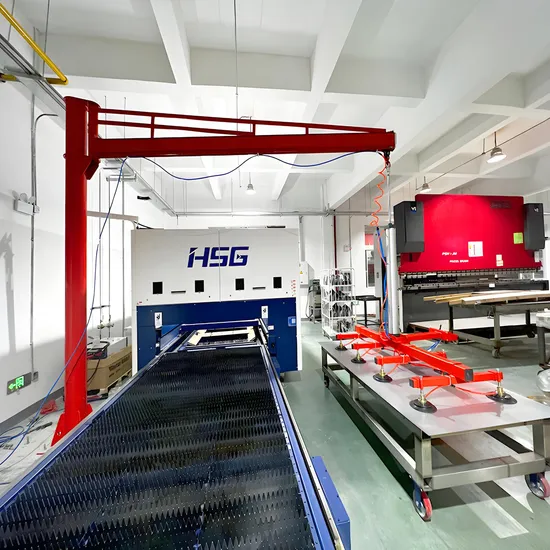

Pneumatic vacuum suction crane is specially used for handling various plates and is suitable for loading and unloading of various processing machines. It has long-term cooperation with international and domestic laser cutting machine manufacturers,
* Laser cutting machine, plasma cutting machine, shearing machine loading and unloading
* Suitable for aluminum plate and stainless steel plate
* Imported vacuum pumps and valves
* Maximum load 2000KG
* Accumulator and pressure detection ensure safety
* Various structures and suction cups available for configuration
* Can be applied to high temperature plates below 400 degrees
* The company passed IOS9001 and the products passed CE and SGS
With a rigorous attitude and a high degree of awareness, it is the company's product quality policy and goal to continuously improve products and achieve zero defects. To this end, the factory has complete product production, trial production, and inspection standards and processes to ensure high standards and strict control of each product process.

The main components are produced by internationally renowned brands, and the quality is guaranteed.
1. Manual valve: The original imported SNS hand valve is used to control the elevator, which is convenient and accurate in controlling the position.
2. Cylinder: Purchase imported AirTac professionally designed Milan to prevent operating shock and freely control the suction cup switch.
3. Load-bearing pulley: This product is our company's race pulley, which is safe for lifting operation and can safely load 100/300/500kg.
1. Vacuum generator: Use original AirTac vacuum generator, safe and reliable
2. Regulating valve: Use original SNS pneumatic accessories regulating valve to safely and accurately adjust the working pressure.
3. Suction cup: Special suction cup made of imported materials, including integral hardware tools; our company specializes in customization, safe and reliable.
Package & Delivery

All products are wrapped with plastic film for protection on the inside and strong export plywood on the outside to ensure that the products are well protected.
Fast shipping
The factory has long-term safe semi-finished product inventory and can guarantee delivery within 7 working days.
How to choose a rocker arm lifter?
1.What are you going to lift, size and weight of the workpiece?

2.What are you going to do with your workpiece? To load and unload punching machines, bending machines or CNC laser cutting systems?

3.What's the minimum working space/radius, plant height of your workshop? What's the subgrade situation of your workshop?
4.Which model are you prefer to use, pneumatic or electric type?
Maintenance and maintenance of pneumatic rocker arm booster:

The mechanical components and control system of the equipment shall be maintained and maintained regularly. Before performing maintenance work and enter the operating area of the booster, ensure that the air,The pressure source is turned off and the air source connector is removed.
*Daily inspection:
1. Check the pressure of the air pressure source and air dryness, and drain the water
In pneumatic twin cylinder;
2. Check whether the vacuum generator is normal;
*Weekly maintenance:
1. Wipe the machine body clean and tighten the bolts in all parts;
2. Check the pressure of the air pressure source and the dryness of the air, and filter the air
Pressure reducing valve, drain valve;
3. Check whether the negative pressure sensor is normal;
*Monthly maintenance:
1. Wipe the dust on the power machine to ensure that the power machine is clean;
2. Check whether the pneumatic plug is loose and make sure it is firm.
3. Re-adjust the running speed of each action;
4. Check whether the trachea is damaged and the air source pressure,As well as the dryness of the air, filter pressure reducing valve and drain valve;
5. Check whether the bolts of each moving part are loose and tightened, and add appropriate lubricating oil;

---
