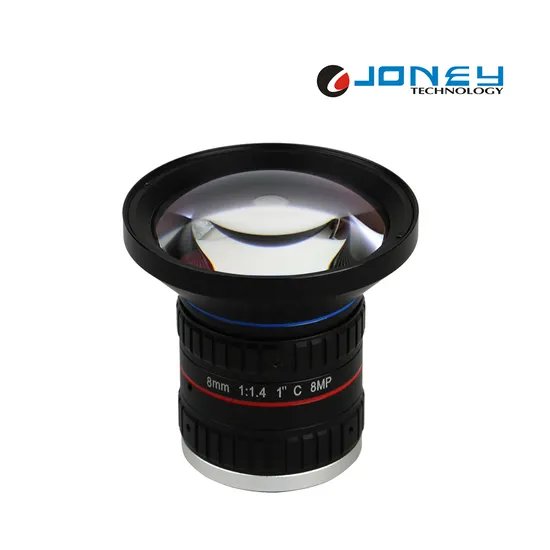

8mm CCTV Lens Security Manual Iris Fixed Focus Lens C-Mount 8MP Aperture F1.4, 1" Lens

US$115.00
100-499 Pieces
US$114.00
500-999 Pieces
US$113.00
1,000+ Pieces

Basic Info.

Model NO.
JY-C-8M-8MP-1F1.4
Maximum Aperture
F1.4
Image Stabilization Function
With Image Stabilization
Filter Size
8mm
Drive Motor
Without Drive Motor
Resolution
8 Megapixel
Image Format
1"
Focal Length
8mm
Aperture
F1.4
Mount
C
Dimension
67*67mm
Weight
303G
Iris
Manual
Focus
Manual
Transport Package
100PCS/Carton
Trademark
OEM
Origin
China
HS Code
9002119090
Production Capacity
100000PCS/Day

Packaging & Delivery

Package Size
15.00cm * 10.00cm * 8.00cm
Package Gross Weight
0.500kg

Product Description

8mm CCTV Lens Security Manual Iris Fixed focus Lens C-mount 8MP Aperture F1.4, 1" Lens
Focal Length(mm): 8mm
Aperture: F1.4
Mount: C mount
Resolution: 8MP
Image Format: 1"
Field of View (DxHxV): 96°/84°/68° 1"
72°/60.5°/48° 2/3"
Optical Distortion: -4.65%
CRA: ≤13.78°
Dimension: Φ67×67mm
Flange BFL: 17.526mm
BFL: 10.5mm
MBF: 10.1mm
Weight: 303g
M.O.D. : 0.5m
IR Correction: No
Lens Construction: metal
Operating Temperature: -20ºC~+60ºC
Operation: Focus Manual
Iris Manual
