Crimp Ring Insulated Copper Cable Terminal Lug

Product Description

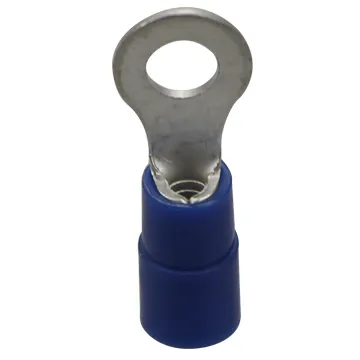

Ring insulated terminals
1, cable lugs are suitable for the connection of copper conductors (section 1.25-5.5mm2) in power cable with electronic equipment
2, Material: They are made of higher 99.99 % pure copper tube T2.3, Working temperature -55oC-150oC
4, Surface: Tin-plated
5, Insulated material: PVC, nylon
6, Wire specification/rated: According customer required
The main products take references to the technical standards and quality requirements of advanced industrial countries such as America, Japan, German, France. Our products are widely applied in all kinds of electric cabinets, transformers, electric equipment, wiring harness manufacture, railway, communication, ship industry, aircraft and, PV, wind power,etc.,at home and abroad. About 50 % of the products are exported to more than 100 countries and regions, such as Asia, European,America, Africa,etc., and our products are trusted by more than 800 famous companies, such as ZTE Corporation, Huawei Telecommunications, Haier Electronics, Toshiba Transformer, Siemens electrical appliances, etc Product Description

PART NO	ITEM NO	WIRE RANGE		DIMENSIONS
		AWG/MCM	mm 2	ΦE	ΦD	Φd	W	B	L	COLOR
LY0020-0001	NL1.25-3	22-16	0.25-1.65	3.7	4.0	1.7	5.5	10.4	17.3	RED
LY0020-0002	NL1.25-3A			3.2	4.0	1.7	5.5	10.4	17.3
LY0020-0003	NL1.25-3M			3.7	4.0	1.7	6.6	10.4	20.3
LY0020-0004	NL1.25-4			4.3	4.0	1.7	8.0	10.4	21.8
LY0020-0005	NL1.25-4M			4.3	4.0	1.7	6.6	10.4	20.3
LY0020-0006	NL1.25-5			5.3	4.0	1.7	8.0	10.4	21.8
LY0020-0007	NL1.25-6			6.4	4.0	1.7	11.6	10.4	27.5
LY0020-0008	NL1.25-8			8.4	4.0	1.7	11.6	10.4	27.5
LY0020-0009	NL1.25-10			10.5	4.0	1.7	13.6	10.4	31.8
LY0020-0010	NL2-3	16-14	1.04-2.63	3.7	4.6	2.3	8.5	10.4	22.3	BLUE
LY0020-0011	NL2-3A			3.2	4.6	2.3	8.5	10.4	22.3
LY0020-0012	NL2-3M			3.7	4.6	2.3	6.6	10.4	19.8
LY0020-0013	NL2-4			4.3	4.6	2.3	8.5	10.4	22.3
LY0020-0014	NL2-4M			4.3	4.6	2.3	6.6	10.4	19.8
LY0020-0015	NL2-5			5.3	4.6	2.3	9.5	10.4	22.3
LY0020-0016	NL2-6			6.4	4.6	2.3	12.0	10.4	27.3
LY0020-0017	NL2-8			8.4	4.6	2.3	12.0	10.4	27.3
LY0020-0018	NL2-10			10.5	4.6	2.3	13.6	10.4	30.8
LY0020-0019	NL3.5-4	12-10	2.63-4.60	4.3	5.6	3.2	9.5	13.3	26.3	YELLOW
LY0020-0020	NL3.5-5			5.3	5.6	3.2	9.5	13.3	26.3
LY0020-0021	NL3.5-6			6.4	5.6	3.2	12.0	13.3	27.7
LY0020-0022	NL3.5-8			8.4	5.6	3.2	12.0	13.3	27.7
LY0020-0023	NL5.5-3	12-10	4.60-6.64	3.7	6.6	3.5	9.5	13.5	26.5	YELLOW
LY0020-0024	NL5.5-4			4.3	6.6	3.5	9.5	13.5	26.5
LY0020-0025	NL5.5-5			5.3	6.6	3.5	9.5	13.5	26.5
LY0020-0026	NL5.5-6			6.4	6.6	3.5	12.0	13.5	32.5
LY0020-0027	NL5.5-6S			6.4	6.6	3.5	12.0	13.5	29.2
LY0020-0028	NL5.5-8			8.4	6.6	3.5	15.0	13.5	34.5
LY0020-0029	NL5.5-10			10.5	6.6	3.5	15.0	13.5	34.5
LY0020-0030	NL8-3	8	6.64-10.52	3.7	8.3	4.5	10.0	17.5	30.0	RED
LY0020-0031	NL8-4			4.3	8.3	4.5	10.0	17.5	30.0
LY0020-0032	NL8-5			5.3	8.3	4.5	10.0	17.5	30.0
LY0020-0033	NL8-6			6.4	8.3	4.5	11.0	17.5	31.5
LY0020-0034	NL8-8			8.4	8.3	4.5	14.0	17.5	36.0
LY0020-0035	NL8-10			10.5	8.3	4.5	18.0	17.5	39.5

---
