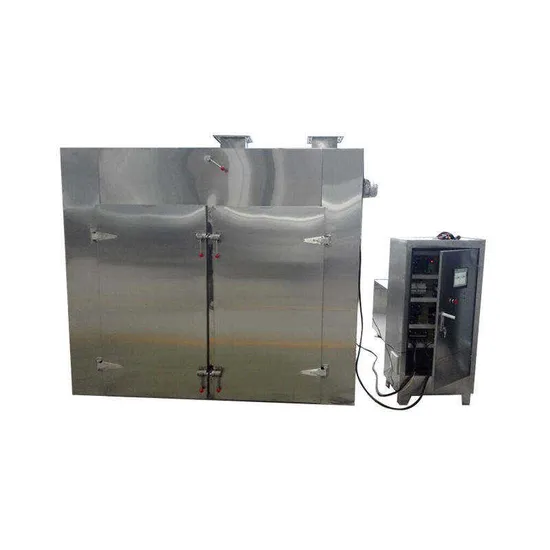

Easy Operation Hot Air Dryer Cardamom Drying Machine Tray Dryer Deshidratador

Product Description

Product Description

Hot Air Circulating Drying Oven CT-C series hot air circulation drying oven uses a low noise and high temperature proof axial flow blower and an automatic temperature control system. The whole circulation system is the fully enclosed to make that the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-45% of the present one.
The highest heat efficiency can reach 50%. The successful design of CT- C hot air circulation drying oven makes that the hot air
circulation drying oven in our country reach the advanced level both at home and abroad. Detailed Information
Product Parameters

Model specification	CT-C-0	CT-C-I	CT-C-II	CT-C-III	CT-C-IV
Dry amount each time (kg)	60	120	240	360	480
Equipped power (kW)	0.45	0.45	0.9	1.35	1.8
Consumption of steam (kg/h)	10	18	36	54	72
Area of radiation(m2)	10	20	40	80	100
Amount of air (m³/h)	3450	3450	6900	10350	13800
temperature difference between up and low(°C)	±2	±2	±2	±2	±2
Amount of drying tray to be equipped	24	48	96	144	192
Overall dimensions WxDxH(mm)	1480*1100*1750	2300*1200*2000	2300*2200*2000	2300*3200 *2000	4460*2200 *2290
Equipped drying trolly	1	2	4	6	8

Detailed Photos
Application Scope
Application 1.The heat source can be steam, heat conductive oil,electricity or far infrared. Customers can select one of them in accordance with practical conditions.
2.Temperature for steam:140ºC-150ºC.
3.Temperature for electricity or far infrared:350ºC.
4.There are automatic and computer control system for customers to choose.
5.The normal steam pressure:0.2-0.8MPa.
6.Power for electricity heat source will be 15KW calculated as Model I. Practical power to be used will be 5-8kw/h.
7.lf any special requirements, pleaseindicate it when order.
8. Parameters for non-standard ovens shall be discussed separately according to different conditions.
9.If the operating temperature is higher than 14ºC or lower then 60ºC, please indicate it when order.
10.The drying trollies and trays are of a standard size and can be exchanged with one another.
11.The size of drying tray:460x 640x45mm.
The radiators can be used for various drying equipment.There are many specifications and kinds.The materials to be used are aluminium alloy stainless steel, A3 steel surface zinc covering,steel and aluminium compound, copper,steel pipe and aluminium winding sheet In addition.the radiators can be used for the heating and dehunidification indoors in the warehouses.
Our factory can carry out the design and manufacturing for our users.
