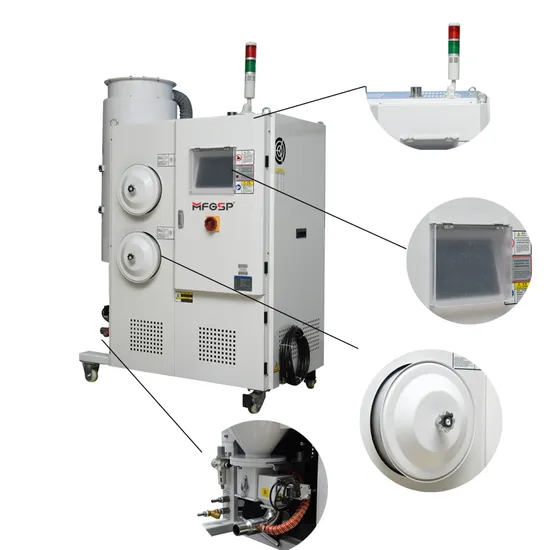

Closely hermetic Dehumidification system Plastic Drying Conveying Machine Industrial Dryer

Product Description

Combination of Drying,Dehumidifying and Conveying

Performance characteristic:
1.Combine the three functions of Drying ,Dehumidifying and Conveying into one. Also can make the equipment convey the materials onto three hoppers according to customer's requirements.
2.The dehumidification system is designed to be closely hermetic,which ensures the air of low dew point doesn't contact with the outside air.
3.The conveying system is designed to be closely hermetic,which ensures the dried material not contactiong with the outside air and being wet again.
4.The shut off valve is equipped on the conveying system to ensure no remnant materials in the material pipeline and smooth conveying.
5.Double-layer heat preservation dry barrel to effective prevent the heat loss and save energy consumption.
6.High efficient heat dissipater to ensure the air with lower temperature and lower dew point.
Specifications:

Model	Capacity (L)	Dry Blower (m³/hr)	Power of Heater (kw)	Power of Dry Blower (kw)	Power of Regenrating blower (kw)	Power of Air Pump (kw)	Power of Regenrating Heater (kw)	Pipe Diameter (mm)	External Dimensions LxWxH(mm)
SLHJ- 40L/80	40	80	4	0.55	0.18	1.1	1.5	38	1160x745x1450
SLHJ- 80L/80	80	80	4	0.55	0.18	1.1	1.5	38	1220x745x1550
SLHJ-120L/100	120	100	6	1.5	0.25	1.1	2	38	1320x840x1680
SLHJ-160L/100	160	100	9	1.5	0.25	1.1	2	38	1370x840x1720
SLHJ-230L/120	230	120	9	1.5	0.25	1.5	3	38	1500x900x1880
SLHJ-300L/150	300	150	12	1.5	0.55	1.5	3	38	1520x1900x1930
SLHJ-380L/200	380	200	14.5	2.2	0.55	1.5	3	38	900x1500x1450
SLHJ-460L/300	460	300	14.5	3	0.55	1.5	3	38	1100x1650x1550
SLHJ-600L/400	600	400	18	4	0.55	2.2	4	38	1100x1650x1550
SLHJ-800L/500	800	500	18	5.5	0.75	2.2	4	51	1750x1900x1900
SLHJ-1000L/700	1000	700	24	7.5	0.75	2.2	5	51	1750x1900x1900
SLHJ-1200L/700	1200	700	24	7.5	0.75	2.2	5	51	1800x2200x2100
SLHJ-1300L/1000H	1300	1000	24	4X2	1.1	3	7	51	2100x2200x2100
SLHJ-1600L/1000H	1600	1000	36	4X2	1.1	3	7	51	2100x2200x2300
SLHJ-2000L/1500H	2000	1500	36	5.5X2	1.1	5.5	7X2	51	2300x2400x2300
SLHJ-2600L/1500H	2600	1500	42	5.5X2	1.1	5.5	7X2	51	2300x2400x2400
SLHJ-3300L/2000H	3300	2000	42	7.5X2	1.5	7.5	7X2	51	2500x2600x2500
SLHJ-4000L/2000H	4000	2000	42	7.5X2	1.5	7.5	7X2	51	2500x2600x2700

Diagram of installation:

---
