Bottom Prcie High Speed Mlt-Yk3120 Direct Drive Six-Axis Mltor Nc System Gear Hobbing Machine Module Range 0.5-4 (MLT-YK3120-E)

Product Description

Economy High Precision Mlt-Yk3120 Direct Drive Six-Axis CNC Gear Hobbing Machine Module
The same quality, lowest price; same price, best quality.

Description			Parameter
Processing Capacity	Control the number of axes Axis		6
	Gear Type		Cylindrical spur gear, helical gear, worm gear, sprocket, drum teeth, taper teeth And other tooth parts
	Machining Accuracy		Mass production grade 7 (GB/T10095-2008)
	Workpiece Workpiece	Max machined diameter	200mm
		Min machining Module	The 0.5 mm
		Max machining Module	4mm
		Max machining Length	250mm
		Cut teeth Number	4 or higher
	Cutter Tool	Maximum hob speed	2000 r/min
		Maximum length of hob	120mm (27,32 tool bar can hold 150mm length hob)
		Maximum outside diameter of hob	100mm
		Dia of changeable center axis which assemble hobbing cutter	22,27,32
		Tool Position Accuracy	≤5um
		Hob Shifting Travel	150mm
		Hob shifting	Auto
	Shaft	Hob Head Swing Angle	Plus or minus 45 °
	Turntable	Z-Slide Travel	300mm
		Turntable Dia	250mm
		Turntable Max. RPM	200RPM
Machine Power Power	Main Motor Power Main motor power		18kw
	Total machine Power Total Power		35kw
Size & Weight	Total Floor Space (L*W*H)		2400 * 2000 * 2600
	Machine Weight Machine weight		6000Kg

Processing Object:
Cylindrical spur gear, helical gear, worm gear, sprocket, drum teeth, taper teeth
And other tooth parts
Technical description

MLT-YK3120 CNC high speed gear hobbing machine is an excellent domestic vertical gear hobbing machine. Carefully developed by MLT and with fully independent core technology.

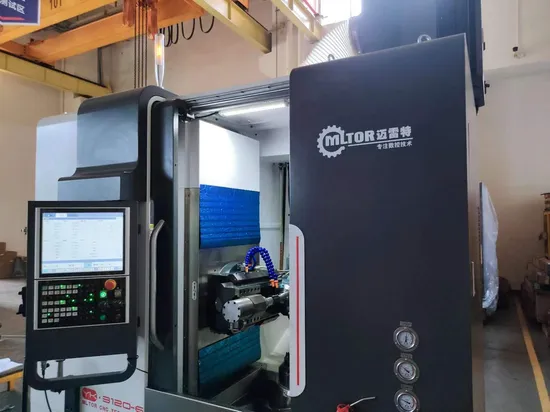

Remark: Picture shown as 4 axis machine
MLT-YK3120 high speed six-axis CNC hobbing machine is our company carefully developed and has completely independent core technology of excellent domestic CNC direct drive hobbing machine, the machine integrates the advantages of modern CNC automatic CNC technology, the use of direct drive B C axis, with high speed, high precision and high torque and excellent dynamic response performance, Compared with other equipment of the same type, it has the characteristics of high machining precision, high processing efficiency and good accuracy retention. Can be processed straight teeth, bevel teeth, small taper, drum and other gears, can easily achieve 45° tooth shape processing. Can be processed spline, less teeth gear and other special gear. With two precision rolling tool setting device. Supports dry cutting.


Service item:
1. Machine warranty period: 12 months once the customer receives machine, after 12 months, we may answer the customer's question on line or by e-mail within 24 hours
2. Mltor will prepare one more set of quick-wear components with the machine for the customer
3. Mltor will not provide or change any part or component for free if the customer damages them abnormally, customer needs to purchase them separately
4. Mltor will afford the customer's technician local transportation, accommodation and catering cost when the customer's technician comes to Mltor factory to have a train or inspects the machine before the machine delivery and the customer will afford their technician travelling cost
5. In the warranty period, if the customer requests Mltor engineer to support in foreign country, Mltor will supports to check equipment and train the customer technician for free but the customer needs to afford Mltor's engineer travelling expenses, local transportation and accommodation and catering cost

---
