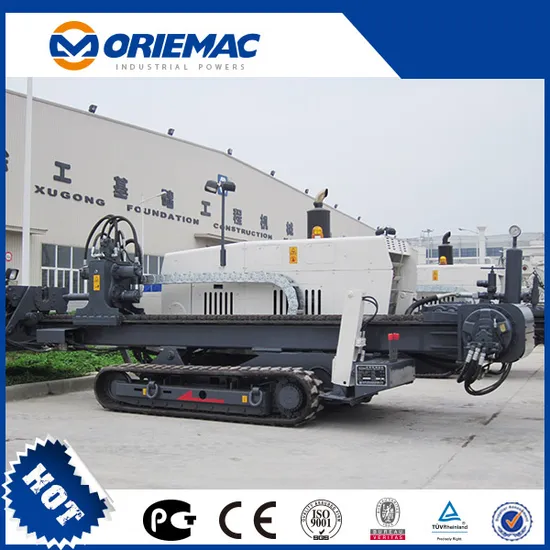

Xz280 280kn Horizontal Directional Drill Rig

Product Description

Technical Features of XZ280:
Dual speed power head: Drilling and pulling at low speed ensure smooth operation; The power head can slide at faster speed to reduce the auxiliary time and improve work efficiency during the assembly/disassembly of drilling stem with empty load.
Rubber track: The rubber track has minor influence on the road, lawn, and scenic spot.
Float clamp: The patented float clamp can effectively extend the service life of the drilling shaft.
Automatic assembly/disassembly: The drill stem can be mounted and dismounted automatically, which improves the work efficiency, reduces the work intensity and thus reduces the number of work staff.
Automatic anchoring: Through hydraulic pressure drive, the cylinder and low speed large torque motor controls the push/pull of the drill stem, and it's simple and convenient to operate.
Rotatable control panel: It widens the field of view and reduces operator fatigue.
Simple to operate: The rotation and push/pull of the power head is controlled separately, and it's simple and convenient to operate. The operator can master the operation skills through short-time training. Model XZ280

Engine		shangchai
Rated power	kW	140
Max.pullback/thrusting	kN	280/280
Spindle torque(max)	N.m	10000
Spindle speed	r/min	0-120
Backreaming diameter	mm	Ø750
Tubing length(single)	m	3
Tubing diameter	mm	Ø73
Entry angle	°	10-23
Mud flow rate(max)	L/min	250
Mud pressure (max)	bar	80
Overall weight	kg	12500
DIMENSION (LxWxH)	mm	7100×2260×2450

---
