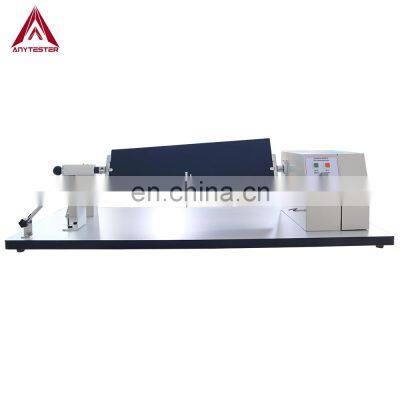

Product DescriptionHY0381 Series Yarn Examine Machine is used to assess the evenness, hairiness, neps and other imperfections in a representative sample of various yarn wound at a pre-determined yarn density onto a quadrate/tapered black or white board.Features★ Driven by synchronous motor, and digital controlling circuit, ensure uniform pitch during a test★ Various pitches to satisfy comprehensive requirements of different yarn linear density;★ Two type board for selection, white board for black yarn (HY381A)★ Equipped with alternative pre-tension device★ Auto-stop function★ Adjustable winding speed★ The material of board is aluminum, it’s more durable.★ Perfect winding appearanceSpecificationsModelHY0381HY0381AHY0381MBoard size220×250mm(L×W)575mm×250mm×160mm(L×W1×W2)300×225mm(L×W)Board shapequadratetaperedquadrateYarn winding density7, 9, 11, 13, 15, 19wraps/cm35, 40, 45, 50wraps/10cmRotational speed10~400RPM (adjustable)Power supplyAC220V 50Hz, 55WDimensions (L×W×H)620×370×340mm1000×370×300mm620×370×340mmWeight30Kg35Kg30KgPacking & DeliveryPackaging DetailsThe normal package is wooden box(Size: L900mm*W900mm*H1020mm). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.PaymentPayment ItemT/TEXWFOBCFR(C&F)CIF30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 50,000usdDelivery Time7~10 days after receiving payment for one containerRelated ProductsOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting usLily ChengWebsiteMobile Phone+86 180 5517 3820Whatsapp+86 180 5517 3820Skype1933039910@qq.comWechat+86 180 5517 3820
>>
