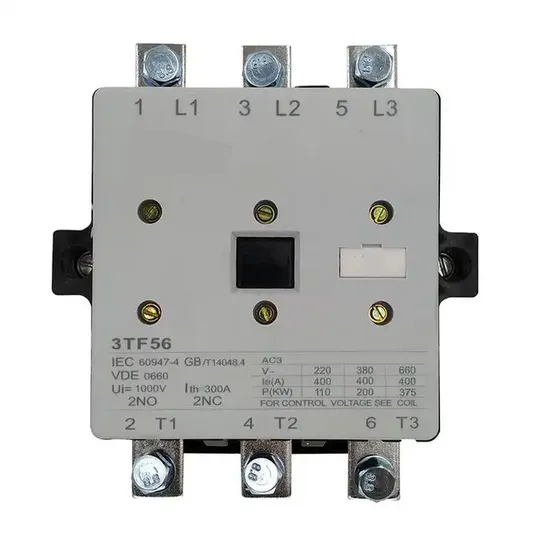

Contactor 3TF50 3TF51 3TF52 3TF53 3TF54 3TF55 3TF56 3TF68

Product Description

Product Description 3TF series of AC contactors are suitable in electrical system with AC 50Hz or 60Hz, with rated operational voltage up to 660Vac, and with rated operational voltage up to 380V for AC3 load, and with rated operational current from 9A up to 630A for the purpose of making or breaking remote motors or system. They from electromagnetic starters with suitable thermal overload or phase-failure. They are made according to IEC947, BS5424 & VDE0660.
The contactor is a straight motion mechanism having double-breaking contacts. The auxiliary contacts are arranged 2NO+2NC at most. It is employed the flexible locking connection between the contact support and core, three are no arc isolated panel in the le ≤ 22A contactors, in the le ≤ 32A contactors, there are moulded are-chute with arc-isolated panel. Because all contacts are made of high non-fusibility and against corrosion silver alloy, All series products can be mounted by screws, le ≤32A contactor also by installation rail.
Model: 3TF30, 3TF31,3TF32, 3TF33, 3TF34, 3TF35,
3TF40, 3TF41, 3TF42, 3TF43, 3TF44, 3TF45, 3TF46, 3TF47, 3TF48, 3TF49,
3TF50, 3TF51, 3TF52, 3TF53, 3TF54, 3TF55, 3TF56, 3TF68
3NO main contact (power contact)
Auxiliary contact: 1NO, or 1NC, or 1NO+1NC, or 2NO+2NC, 4NO+4NC.
Product Parameters

Type	Rated themal current (A)	Rated operating current (A)		Controllable power of (kW)				Auxiliary contact
				AC-3		AC-4
		380V	660V	380(V)	660(V)	380(V)	660(V)
3TF30	20	9	7	4	5.5	1.4	2.4	1NO 1NC 1NO+1NC 2NO+2NC
3TF31	20	12	8.5	5.5	7.5	1.9	3.3
3TF32	30	16	12.5	7.5	11	3.5	6
3TF33	30	22	16.5	10	15	4	6.6
3TF34	55	32	24	15	22	7.5	13
3TF35	55	38	30	18.5	22	9	15.5
3TF40	20	9	7	4	5.5	1.4	2.4
3TF41	20	12	8.5	5.5	7.5	1.9	3.3
3TF42	30	16	12.5	7.5	11	3.5	6
3TF43	30	22	16.5	10	15	4	6.6
3TF44	55	32	24	15	22	7.5	13
3TF45	55	38	30	18.5	22	9	15.5
3TF46	80	45	40	22	37	12	20.8	2NO+2NC 4NO+4NC
3TF47	80	63	60	30	55	14	24.3
3TF48	100	75	60	37	55	17	29.5
3TF49	100	85	80	45	75	21	36
3TF50	160	110	95	55	90	27	46.9
3TF51	160	140	120	75	110	35	60
3TF52	200	170	160	90	150	38	66
3TF53	210	205	165	110	160	50	86
3TF54	300	250	230	132	220	58	100
3TF55	300	300	260	160	250	66	114
3TF56	400	400	380	200	355	81	140
3TF68	630	630	600	335	560	160	278
