Hydraulic Marble Granite Stone Cutting Machine

US$4,800.00-9,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
40-500 tons
Type
Hydraulic Cutting Machine
Usage
Granite, Marble
Application
Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
Medium Speed
Control
CNC
Certification
ISO
Name
Stone Cutting Machine
Capacity
1000kg/8h
Transport Package
Wooden Case
Specification
TP-40-500
Trademark
Shuliy
Origin
China
HS Code
0000000000
Production Capacity
50sets/Month

Product Description

please contact Alysa for details

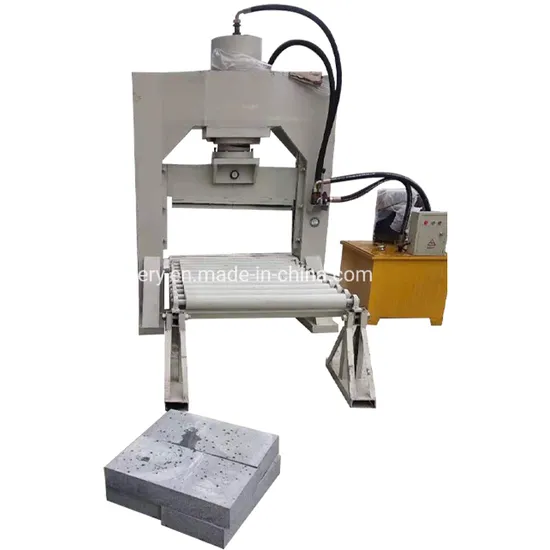

Stone Cutting Machine for all kinds of stone
Introduction
This machine is a hydraulic equipment that can quickly split granite, marble, sandstone, basalt, slate and other rocks. The huge power of 320 tons, coupled with the ultra-wide knife edge of 1200mm, enables it to cut large-scale blocks of any rock into large-scale building stones, curb stones, strip stones, and various specifications with a maximum cross-section of 1200*800mm. It also provides semi-finished products for small blocks, paving stones, wall stones, curb stones and other small models of stone cutters.
Because the upper and lower cutter bodies can automatically expand and contract 1-3cm according to the shape of the stone, even if the surface shape of the block is a little irregular, it can be quickly split, and the section is flat and accurate.
Application field and introduction of stone splitter
(1) Mining operation of building stone: secondary disintegration of large ores (metal ores, non-metal ores);
(2) Partial and complete demolition of concrete components (cement pavement, machine tool foundation, bridge and housing components).
(3) Crushed stone treatment of dangerous rock slopes in housing construction on water conservancy and hydropower expressways.
(4)Excavation of foundation pits, trenchless pipeline construction, and removal of road blocking boulders.
Parameter
Model Power Max.pressure Capacity Processing size Dimension Blade size Weight
TP-40 4kw 40T 1000kg/8h 200*400mm 1300*1100*1900mm 330mm 750kg
TP-100 7.5kw 100T 5000kg/8h 300*600mm 1500*1100*1900mm 600mm 1000kg
TP-350 16kw 350T 1200kg/8h 1000*1000mm 2500*2000*4000mm 1000mm 4000kg
TP-500 18kw 500T 1200kg/8h 1500*1500mm 3000*2000*4500mm 1500mm 5000kg
Remark: If you need other models, we can customize for you.
