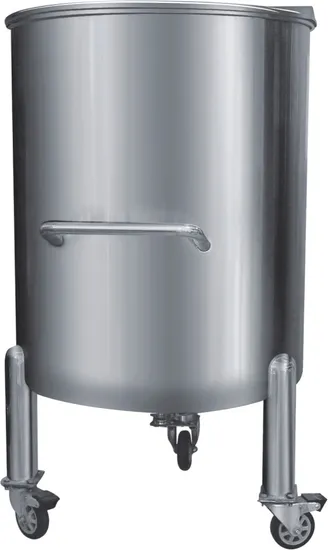

Sanitary Stainless Steel Mixing Tank by Guangzhou Factory

Product Description

Name: Stainless Steel Mixing Tank
Automation: Manual, semi-automatic, full-automatic
Capacity: 100-1000L
Suitable Temp.: 0-100 celsium degree or higher upon requirement
Power: 380V/50Hz/3Phase or customized
Control System: Push button/PLC/touch screen; Optional
Material: 304/316L optional
Structure: 3 layers(inner bladder, jacket, insulation layer), 2layer, 1layer upon requirement
Surface: Inner/outer polished, outer: Drawbench polished
Stirring method: One direction mixing or two direction(optional)
Stirrer type: Can be selected from anchor type, impeller type, frame type, high speed shear, magnetics type and etc.
Application: Can be used to mix and melt all kinds of materials in industries like pharmacy, cosmetics, chemicals, resins, paintings, confectionary, pigments and etc.,
Application:
Stainless steel stirred tank widely used in pharmaceutical, chemical, food, beverage, water treatment, brewing, ink, oil, printing and dyeing, environmental protection, oil, alcohol, hospitals and other industries, various types of liquid filtration, rough filtration, fine filtration, clarification ideal equipment purification treatment.
Stainless steel mixing tank is my company's own development of new products, with no leakage, fully enclosed, corrosion-resistant, energy-saving features. Due to its non-contact torque transmission to replace the static seal dynamic seal, to solve the other shaft seal can not overcome the problem of leakage, the entire media and agitation in sterile health status to operate, pharmaceutical, fine chemicals, cosmetics and biological engineering industry ideal replacement products.
Suitable material under a certain pressure mechanical stirring flammable, explosive, toxic, odor and other dissolved materials, sterilization, fermentation process takes a long time (over 24 hours) constant moving equipment. More suitable for biological engineering in the production process does not allow any trace leaks and contaminated equipment.
Technical Parameter

Effective volume	Dimension of tank	Total height	Diameter of inlet&outlet	Heat preservation layer	Motor power	Blending speed
(L)	(mm)	(mm)	(mm)	(mm)	(kw)	(r/min)
500	840*1000	2750	60	38	0.55	Common rotation speed 35,43,60 ; stepless speed reducer or dual-speed reducer are also available
600	920*1000	2850	60	38	0.55
700	990*1000	2850	60	38	0.55
800	950*1220	3000	60	38	0.55
900	1010*1220	3000	60	38	0.55
1000	1060*1220	3150	60	51	0.75
1500	1160*1500	3350	60	51	0.75
2000	1340*1500	3410	60	51	1.1
3000	1410*2000	4000	60	51	1.5
4000	1620*2000	4250	60	51	1.5
5000	1810*2000	4300	60	51	2.2
6000	1980*2000	4550	60	51	2.2
7000	1930*2440	5000	60	51	2.2
8000	2060*2440	5000	60	51	3
9000	2180*2440	5050	60	51	3
10000	2300*2440	5050	60	51	3
12000	2270*3000	5600	60	51	4
15000	2530*3000	5700	60	51	4
20000	2640*3660	6400	60	51	5.5

The stainless steel mixing tank performance:
1.Tank and tank with the same or different forms of head structure, in the form of a jacket or a single combination of different requirements noted in a device structure.
2 .magnetic stirring device into a magnetic stirrer and under magnetic stirring on a magnetic stirrer suitable capacity (3-50m3) and large-torque device. Under magnetic stirring with capacity of less than (3m3) and equipment with high hygiene requirements.
3. interface with the international standard ISO standard quick chuck, the material is imported 316L or 304, the inner surface of the mirror-polished Ra ≤0.28 μm, the outer surface of the matte or mirror polished.
4 .Material: cylinder 304 and 316L (optional). 5 level gauge with universal flat level gauge, level gauge glass, level gauge static pressure sensor, ultrasonic level meter for selection.
About us
Guangzhou Li&Li Mechanical Equipment Co, . Ltd. Is professional corporation that mainly operates design, manufacture, installation and debugging of cosmetic, pharmaceutical, chemical, food, etc. Equipments. Enterprise strictly implements the ISO9001 standard management, with strong technical force, complete detection equipment, advanced process and complete product variety which including all kinds of Reaction Kettle, agitator bath, storage tank, vacuum emulsifying machine, conveyor, filling machine and non-standard equipments process and manufacture; Electrical engineering, automatic-control engineering, pipe design and equipment installation.

---
