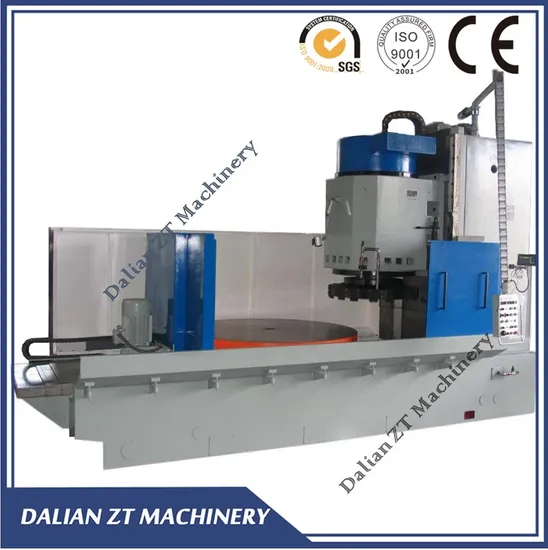

Vertical Spindle Surface Grinding Machine with Rotary Table M74125E

Product Description

eatures:
M74 Vertical surface grinding machine with rotary tableThe grinding range is from dia. 500mm to 2500mm. This series of grinding machine is mainly used for the industry needing grinding process,
such as circular saw blade, automobile parts and components, tool and guage, bearing, mold and mold holder, magnetic material, hydraulic parts etc.

Item	M74125E
Table diameter	Φ1250mm
Table speed	5-20rpm
Max. Swing dia. of workpiece	Φ1300mm
Table movement	560mm
Total machine power	53kW
Max. Loading of table	1500kg
Grinding wheel size(ODxIDxH)	650x570x150mm
Spindle speed of grinding head	740rpm
Grinding head motor	45kW
Max. Grinding size(DxH)	Φ1250x320mm
Roughness of machining surface	Ra0.8um

Standard accessories:
Coolant tank;
Coolant pump;
Cable;
Wrench;
Machine wedge;

FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.

---
