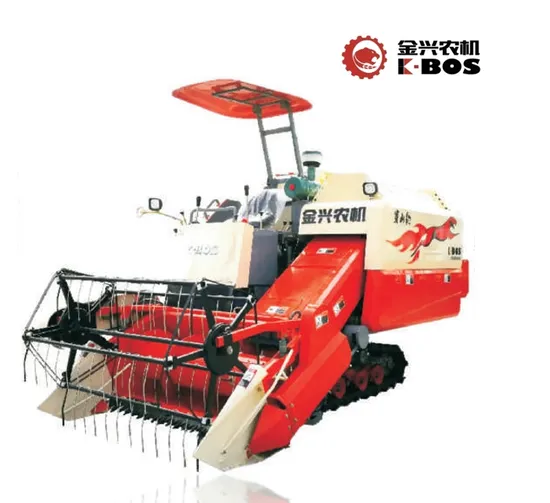

4LZ-3.0Z Combine Harvester, is suitable for rice, wheat, rape seeds and other granular crops, its wider rubber track with teeth, it performance very good in water field.
This machine is easy for operation and maintenance, it is a safety and energy-saving machine.
| Overall Dimension | Length×Width×Heights ( mm ): 4300×1980×2675 |
| Weight (kg) | 2410 |
| Feeding Capacity( kg/s ) | 3.0 |
| Harvesting Capacity(hm²/h): | 0.05-0.48 |
| Engine | Engine Model: 4B2-60U32 |
| Rated Power ( kw/hp ): 4402/60, 51/70 (Alternative) |
| Type: Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel. Turbocharged Engine. |
| Driving System | Crawlers(mm): 400*90*46 |
| Minimum Ground Clearance (mm): 280 |
| Type of Gearbox: Hydraulic type + HST(3F, 3R) |
| Cutting header | Pickup Reel: Type: Eccentric Tooth(off-centre); Diameter( mm ): 800; Nos: 5 |
| Cutting Bar Length ( mm ): 1550 |
| Rape Seed Extension: Optional |
| Threshing & Separating | Threshing System: Spiked Tooth Axial Flow |
| & Cleaning System | Main Threshing Cylinder Size Diameter × Length ( mm ): 540×1521 |
| Assistant Threshing Cylinder Size Diameter × Length ( mm ): 540×650 |
| Vibrating Sieve: Adjustable sieve or Round hole sieve. |
| Concave Sieve: Grid × 2 |
| Grain Storing | Option 1: Big Grain Tank Capacity 950L with 360 °/ 90° Unloading Auger |
| Option 2: Small Tank Capacity 400L by Manpower |
