Qt4-15 Fully Automatic Blocks Making Machine 840 PCS Per Hour

Product Description

Dongyue Machinery Group is leading brick machine manufactuer in China.Our main products include large and medilum concrete brick machine,AAC block machine.AAC panel brick machine and Sand lime brick machine.With offices in india,indoensia,vietnam,we are trying to serve our customers better.
1.QT4-15A small fly ash brick making machine introduction

QT4-15C medium size block making machine small paving block making machine for sale is suitable to make road blocks, road-side bricks and river bricks. Adopt sub-storage device and independent storage hopper, this machine can overcome the liquefaction of concrete defects in advance, and ensure the quality of the finial products. It can automatically operate the whole set, from material feeding to finish products output.

2.General notice
1. Customized color is available based on previous notice.
2. The third party inspection is available.
3. If needed, the seller can help the buyer to handle shipping and insurance.
4. Marking and package shall be arranged according to applicable international requirements.
5. Guarantee: Our block machine has been taken under guarantee by the seller from the date of commissioning within 12 months on the premise of regular use of the buyer. An Acceptance Act will follow to inspect the application of the equipment.
6. Installation & commissioning is available based on the clients' requirement.

3. QT4-15A medium size block making machine Main technical parameters

Dimension	2440×2000×2600mm	Host machine power	25KW
Moulding area	400×800mm	Vibration force	40KN
Moulding period	15-25S	Capacity	68.25KVA
Pallet size	1010×550×20/25mm	Mixer model	JS500
Weight	5T	General water Consumption	4T/every day
Voltage	as per local requests

1 Theoretical workshop area : 150 m2 , need about 3-4 workers.
2 The office,curing area and stacking area to arrange according your practical situation.


4.QT4-15A medium size block making machine Production capacity

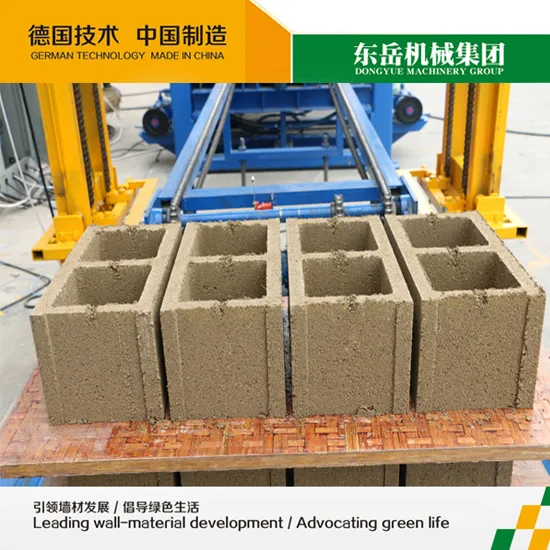

Size(LxWxH)	Pcs/Mould	Pcs/ Hr	Pcs/ 8 Hr	m3/year
400X100X200	8	1200	9600-11520	23040-27648
400X150X200	6	900	7200-8640	25920-31104
400X200X200	4	600	4800-5760	23040-27648
400X250X200	3	450	3600-4320	21600-25920
Paver:200X100X60	16	1820	14560
Paver:200X163X60	8	1100	8800

5.QT4-15A automatic price block press machine vibration system:

Which can effectively expand the vibration area and achive two-fold, substantial progress in product quality and output. And effectively extend the useful life of the mould. Vibration box with hanging structure, can withstand severe vibration without damage and fracture. Eccentric shaft vibration synchronous rotating vertical structure produced by the exciting force, enable the best results of fabric and forming.

1.Full automatic block machine feeding machine system
The feeding machine rastellus use combined type, and make it more conveniet when change it, and the feeding part use Push-pull type with back and forth .and make the aggregate will more blance, and assure the concerte blocks hight and weight keep accordance. Use the Continuous rotary type and compulsory feeding system can achieve mixing second time. Feeding speed more quickly.Full automatic free burned block making machine ejection mechanism: This body mainly uses two fuel tanks mounted under the bottom of the rack to control the movements of ejection seat; rack at the top adopts arm-type rigid synchronization mechanism, which may ensure that the mold frame moves smoothly, when demoulding will not damage the surface of molding bricks.
2.Full automatic block machine color surface machine parts
The color surface machine crane use hydraulic control system, the color surface hopper connected by crane and rubber spring, will have shock absorption effect, at the same time can prevent rest color material become lump. The material door control the hopper open and close ,will achieve feeding blance.
3.The brick conveyor system of fully automatic brick forming machine
The system is equipped with one automatic brick getting-out machine and automatic brick getting-in machine , The brick getting-out machine uses the V-belt to drive brick pallets for reducing the abrasion of pallets. And also brick getting-out machine is equipped with Paint Roller,which could adjust the height of Rolling Brush rack via the screw nut so that the whole process would become more accurate and expeditious.
4.Full automatic free burned block making machine's stacking system
The system uses well-known foreign company's advanced electronic control systems and electrical components, with the realization of a rational man-machine dialogue interface. Adopt proximity switches, photoelectric switch control hydrocylinder's start and stop time, shift distance and rotation angle, using high-sensitivity displacement sensor control Stacking upgrade folder to reduce altitude, with a protection function
5. Fully automatic burn-free block machine adopt PLC control system
It can set the various actions through adjust the flow, press etc technique parameters by touch screen,, achieve machine-human talking, the control system mainly included three units,(1) fully automatic batching and mixing control system (2) brick forming machine, pallets transferring control system (3) stacking block machine control system

The components of this system are all using imported brand, such as Japan Mitsubishi , Omron, Germany Siemens etc, high performance, low maintenance.

---
