Blown Film Machine Elevator Rotary Head Plastic PE Film Blowing Machines

Product Description

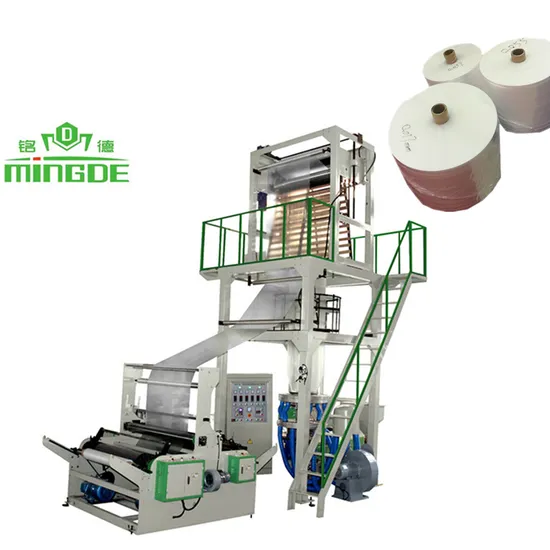

MD-HL HDPE/LDPE FILM BLOWING MACHINE
1. Top quality film blowing machine
2. High quality products
3. Quality first, customer first
HDPE/LDPE Plastic Film Blowing Machine
Introduction:
Its extruder, cylinder and screw are made of quality alloy steel which have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like LDPE, HDPE and LLDPE, widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest bags.
Usage:
The lines are designed developed by our corporation according to market need, they reach the advanced levels
In the 90s, come up with analogous lines in home. It is optimum designed on the trounds of preference of analogous
Lines in foreign and home. The lines can be blown cotinuous 800/1500mm in fold width 0.08mm in the thickness packaging
Films, film has good insulation, for instance holding temperature, anti-humid, anti-freeze, anti-rain, anti-rost, insulation oxygen,
Oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meats, salt vegetables, fresh milk, drink and so on.
We provide you sincerely service, if you have interests contact us now! ! !



TOP QUALITY-BUY NOW-24 HOURS ONLINE
Option Device:
Auto Loader
Corona
Automatic air supplier
Double winder
Air shaft
Manual mechanics screen changer
Full automatic winder
Rotary die head

Model	MD-HL50	MD-HL55	MD-HL60	MD-HL65
Suitable Material	HDPE/LDPE/LLDPE	HDPE/LDPE/LLDPE	HDPE/LDPE/LLDPE	HDPE/LDPE/LLDPE
Max Film Width(mm)	600	800	1000	1200
Film Thickness(mm)	HD:0.008-0.08 LD:0.02-0.15	HD:0.008-0.08 LD:0.02-0.15	HD:0.008-0.08 LD:0.02-0.15	HD:0.008-0.08 LD:0.02-0.15
Max Extrusion Output	HD:40kg/hr LD:50kg/hr	HD:50kg/hr LD:60kg/hr	HD:60kg/hr LD:70kg/hr	HD:80kg/hr LD:100kg/hr
Extrusion Unit
Gear Box	146	173	173	200
Screw Diameter(mm)	φ50	φ55	φ60	φ65
Screw's Material	38 CRMOALA	38 CRMOALA	38 CRMOALA	38 CRMOALA
Barrel's Material	38 CRMOALA	38 CRMOALA	38 CRMOALA	38 CRMOALA
Barrel's Cooling Fan	250W*2	250W*2	250W*2	250W*2
Thermo Control (zone)	3	3	3	4
Driving Motor (kw)	11	18.5	22	30
Extrusion Die
Die Size (mm)	HD:φ60 LD:φ150	HD:φ80 LD:φ180	HD:φ80 LD:φ180	HD:φ120 LD:φ250
Die rotary device	360°Continue Rotary	360°Continue Rotary	360°Continue Rotary	360°Continue Rotary
Screen changer	Standard manual	Standard manual	Standard manual	Standard manual
Thermo Control(zone)	2	2	2	2
Air Ring(mm)	φ620	φ760	φ760	φ760
Cooling Blower(kw)	1.5	2.2	2.2	3
Center steady stick	1pcs	1pcs	1pcs	1pcs
Take-up Unit
Roller Width(mm)	φ138*650	φ138*850	φ138*1100	φ138*1300
Embossing roller width	550mm	750mm	1000mm	1200mmmm
Take-UP Motor (kw)	0.75	1.1	1.1	1.5
Take-UP Speed(M/min)	10-60	10-60	10-60	10-60
Height adjustable type	700mm	700mm	700mm	700mm
Winding Unit
Type of Winder	Surface friction winder	Surface friction winder	Surface friction winder	Surface friction winder
Roller Width (mm)	700	900	1100	1300
Winding Motor(KW)	6	10	10	16
Winding Speed(M/min)	10-60	10-60	10-60	10-60
Voltage	380V/50HZ/3PHASE	380V/50HZ/3PHASE	380V/50HZ/3PHASE	380V/50HZ/3PHASE
Cover Dimensins(m)	4.5*2*4.3m	4.5*2.2*4.5m	5*2.5*4.8m	5.5*2.8*5.2m

---
