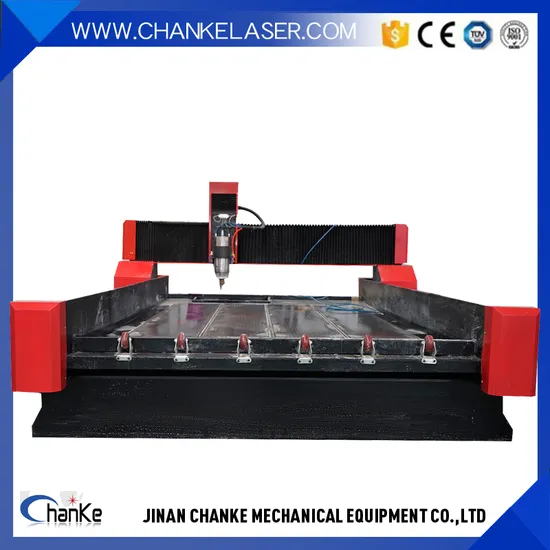

Water Cooled Stone Cutting CNC Router

Product Description

1300x2500mm CNC marble engraving machine designed for intricate stone and marble craftsmanship
1. Featuring a T-slot mesa, the lathe bed offers superior stability.
2. The advanced water cooling system ensures extended cutter lifespan.
3. Includes a breakpoints function for power failure recovery, allowing continuous carving.
4. Equipped with a dust oiling structure to effectively ensure long-term mechanical performance.
5. High-power water-cooled brushless motor delivers exceptional cutting force and durability.
6. Uses imported, joint-venture brand components for stable and reliable performance.
7. High compatibility with various CNC software including Type3, Artcam, Castmate, Pore, Wentai, and varied CAD/CAM systems.
8. Equipped with a sink and an automatic water supply system, ensuring comprehensive cooling for both the cutting tool and the machining of stone or metal.
9. Industrial-grade machine body with a heavy-duty all-steel welded structure, undergoes tempering aging treatment for unmatched durability and deformation resistance.
10. Advanced triaxial dust protection and waterproof technology to safeguard guide rails, gears, and racks from dust and debris, extending the lifespan of critical components.
Applicable Industry
Ideal for the stone industry, stone processing, art, advertising, decoration, ceramics reliefs, and more.
Technical Parameters

Working size	1300×2500×200mm cnc stone machine
Spindle power	Water cooling 3000W
Spindle rotation	6000--24000rpm
Motor driver	Stepper motor driver(Chinese servo motor and Japan servo motor is optional)
Tool diameter	3.175, 4, 6, 12.7mm
Machine structure	Industry square tube structure
Transmission	High accuracy gear rack
XYZ rails	PMI square rails
Dust-proof system	XYZ high quality dust cover
Mechanical accuracy	0.03/300mm
Engraving speed	12000mm/min
Data transmission	PC connect directly
Support format	G code or HPGL
Working voltage	AC220V/50Hz or 380V/50Hz
Net weight	1500kg

Each stone CNC router is packed with a standard inner plastic wrap and steel structure, enclosed in an outer plywood case. The inner package secures all small parts tightly, while the robust plywood offers firm protection during shipping.
The advantages of the plywood case package:
Firstly, the plywood case boasts superior compressive strength and bearing quality, making it a top choice for packing heavy goods.
Secondly, the large board area and solid structure simplify the operational process, providing excellent leak-proof and waterproof qualities.
Thirdly, the plywood case is fumigation-free when importing, streamlining the procedure.

---
