CNC Gantry Milling Double Column Machining Center XH3022 XH4022 XH5022

Product Description

Product Description

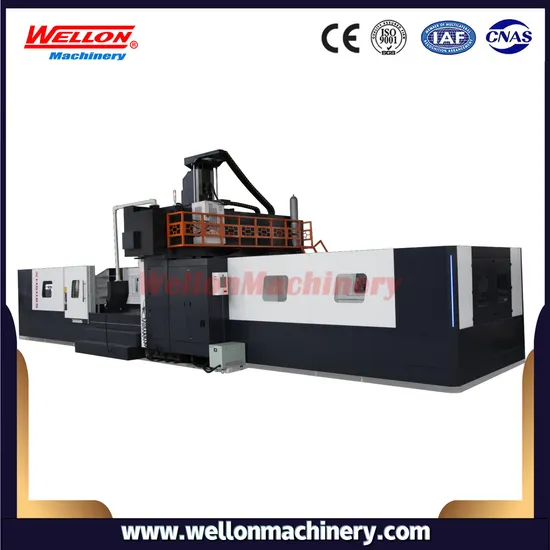

CNC Double Column Machining Center XH3022 XH4022 XH5022

Detailed Photos
Product Parameters

Technical parameter:

Item	Unit	XH3022	XH4022	XH5022
X axis travel	mm	3000	4000	5000
Y axis travel	mm	2200	2200	2200
Z axis travel	mm	1000	1000	1000
Spindle nose to worktable	mm	280-1280	280-1280	280-1280
Distance between two column	mm	2300	2300	2300
Leadscrew diameter	mm	80/63/50	80/63/50	80/63/50
Linear guideway width	mm	55/55/Rectangle	55/55/Rectangle	55/55/Rectangle
Worktable Length	mm	3000	4000	5000
Worktable width	mm	2000	2000	2000
T slot qty-width*distance	mm	9-28*200	9-28*200	9-28*200
Max loading capacity	Ton	10	12	14
Spindle speed	rpm	6000/belt	6000/belt	6000/belt
Spindle motor power	kw	22	22	22
Fast moving speed	m/min	12/12/10	12/12/10	12/12/10
Cutting speed	mm/min	1-8000	1-8000	1-8000
Spindle taper		BT50	BT50	BT50
X/Y/Z axsis motor torque	Nm	38/30/30	50/40/30	50/40/30
Tool Magazine Capacity	pcs	Disc/24	Disc/24	Disc/24
Positioning accuracy	mm	0.020/0.020/0.018	0.020/0.020/0.018	0.020/0.020/0.018
Repeat accuracy	mm	0.012/0.012/0.012	0.012/0.012/0.012	0.012/0.012/0.012
Length	mm	8000	10200	11750
Width	mm	4700	5000	4740
Height	mm	5000	5300	4100
Weight	kg	31000	350000	38000

Standard accessories:

Mitsubishi M80A controller

Spindle speed 6000rpm belt type

24 tools disc type

Screw type chip conveyor & chip bucket *2

Chain type chip conveyor & chip bucket *1

Nitrogen balance cylinder

Air conditioner in cabinet

Air gun+Water gun

Automatic lubricating system

2-Axis linear guideway from Taiwan Hiwin

Ball leadscrew from Taiwan Hiwin

Levelling pad,nut and bolts

Tools and tool box

Optional accessories:

Spindle oil cooler

CTS 20bar

CTS 30bar

Reneshaw tool probe TS27R

Reneshaw workpiece measurement device OMP60

Gear head

Manual angle head

Auto angle head

Chain type ATC 32 tools

Chain type ATC 40 tools

HEIDENHAIN scales/1m

4TH Axis rotary table 255mm+tail stock+hydraulic station

5TH Axis rotary table 255mm+hydraulic station

Company information

Packaging & Shipping

FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Double Column
Machining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
