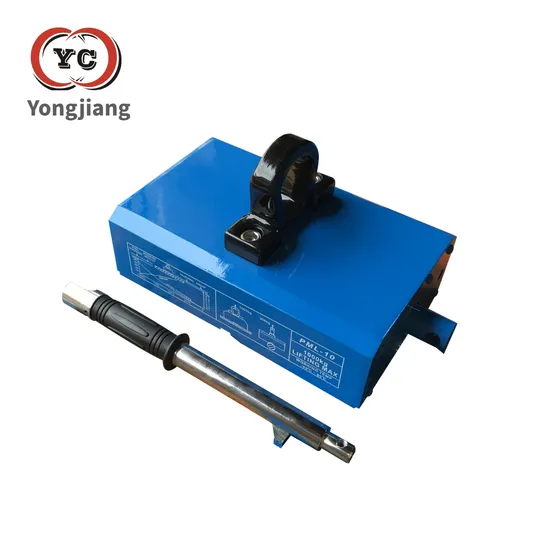

Chinese Lifting Factory 1000kg Double Circuit Permanent Magnetic Lifter

Product Description

Double circuit magnetic lifters have strong magnetic path by NdFeB magnetic materials. On and off the magnetic path is controlled by turning the manual nozzle. Higher magnetism, less weight and less remaining magnetism when being off, which makes a more reasonable structure. Especially for handle, its new designs enable its damper strength on operating is only 30%-40% compared with the single-magnetic ones. Thin magnetic-inductive material can also be lifted as long as their thickness is more than 5mm.

Model	Rated lifting strength (kgf)	Cylindrical lifting strength (kgf)	Max pull off strength (kgf)	Length(mm)	Width(mm)	Height(mm)	Handle length(mm)	N.W(kg)
PML-3	300	100	900	163	133	60	180	9.5
PML-6	600	200	1800	234	162	74	220	21
PML-10	1000	300	3000	302	190	87	265	37.5
PML-20	2000	600	6000	441	231	107	380	77

Ningbo Jiangbei Yongjiang Permanent Magnetic Lifter Factory, which is specilized in manufacturing permanent magnetic lifters,permanent planar chuck and other magnet equipment since 2004.
Our YC series magnetic lifters have past the quality test from the German Rhine Technology and gained the CE certification.
We always follow "Quality first, Credit formost" as our belief. We are sincerely looking forward to your cooperation.
Q1: Are you a factory or a trading company?
A1:We are the direct manufacturer, that mainly produce single product magnetic lifter more since 2004.We product about 20000 pieces every year, and 70% for European and American market.
Q2: Can YJYC lift provide customized products? OEM products or ODM products?A2: Yes, YJYC can provide customized products according to your requirement. Both OEM and ODM are acceptable.Q3: Can we print the LOGO on products?A3: Yes, the OEM is available with the permission of our customers.
Q4: How long is the warranty on your products?A4: We provide 12 months warranty for all of our product, excluding quick wear parts such as handles.
Q5: What's the lead time for production?A5: Usually around 15-20 days after payment received, around 30 days during new year's or national holidays.
Q6: What Payment terms do you accept?A6: T/T, if you want any other method please contact sales
Q7: How do you control your quality?A7:
1. We select N48-50 magnet to guarantee the long life circle. 2. 100% finished product testing before shipping. 3. We accept third party product inspections. 4. Supervised container loading process, ensures the last step securityQ8: What are your advantages compared to the others?A8:
1.Unique products, with customized service.
2.Timely production and delivery, time is money.
3.Market protection service, long term business strategy.

---
