US$6,999.00-8,999.00
|
1 Set
(MOQ)
|
Basic Info.
Spindle Speed
600-800 R/Min
Transport Package
Wooden Case
Specification
1700X700X1400mm
Production Capacity
1000 Set/Year
Packaging & Delivery
Package Size
180.00cm * 120.00cm * 150.00cm
Package Gross Weight
3000.000kg
Product Description
Product Description Technical Specification
| Model | YE-60 |
| Cutting capacity | OD:10mm-60mm. |
| Stainless steel | thickness 0.5 to 10 mm, length range within a single feeding 300mm |
| Steel pipe | thickness 0.5 to 20 mm, length range within a single feeding 300mm. |
| Spindle speeds | 600-800 r/min |
| Power type | AC current |
| Supply voltage | 380V |
| Power | 4000W |
| Overall dimensions | 1700X700X1400mm |
| Machine weight | 1000Kg |
| Input flow | 0.55-0.7KPa |

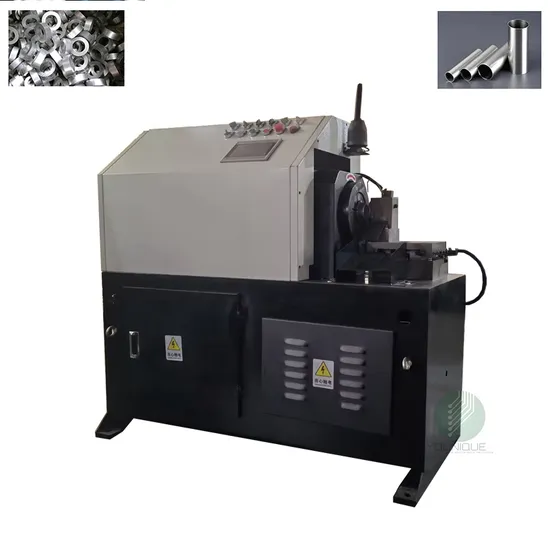

Main uses and characteristics of machine tools:
1,This machine is suitable for cutting all kinds of pipe materials, especially for mass production of bearing enterprises. The machine adopts PLC control, advanced servo system positioning and cutting, one feeding multiple cutting, with high precision and high efficiency. The detection of each cutting workpiece of the machine tool makes up for the shortage of the feeding of oil, rust and bending materials in the previous machine tool and the disadvantage of rebound after feeding, so as to eliminate the occurrence of waste products.
2,The machine has broken blade and no material alarm.
3,The machine adopts cross roller quenched guide rail, which has the characteristics of good rigidity, small rolling friction and long life.
4,Vertical and horizontal servo system control.
Machine parts configuration and origin brand
| No | key component | Specifications | Qty. | Power | Brand |
| 1 | Main motor | Level 3 | 1 set | 4KW | Zhejiang mingsu motor |
| 2 | Electric system | ECM series AC servo | 2 set | 400W/750W | Taiwang taida |
| 3 | Display touch screen | TPO49-BL-CU | 1 set | | Taiwang taida |
| 4 | PLC | DVP4ES2/40 | 1 set | | Taiwang taida |
| 5 | Lead screw/cutting feed | 20-5 | 1 pcs | | TBI |
| 6 | Lead screw/Feeding Material | 20-10 | 1 pcs | | TBI |
| 7 | Guide rail | Type 25 | 4 pcs | | TBI |
| 8 | pneumatic component | 4V210 | 3 pcs | 24V | JRI |
| 9 | Bearing | 7016P5BB/2pairs 7018P5DBB 32024P5 32022P5 | 5 pair | | Haerbin |
