Basic Info.
Lubrication Oil Capacity Liter
0.6
Ignition System
Flywheel Magneto Type(Solid State)
Transport Package
Cartons
Specification
286X330X334
Production Capacity
50000PCS/Per Month
Product Description

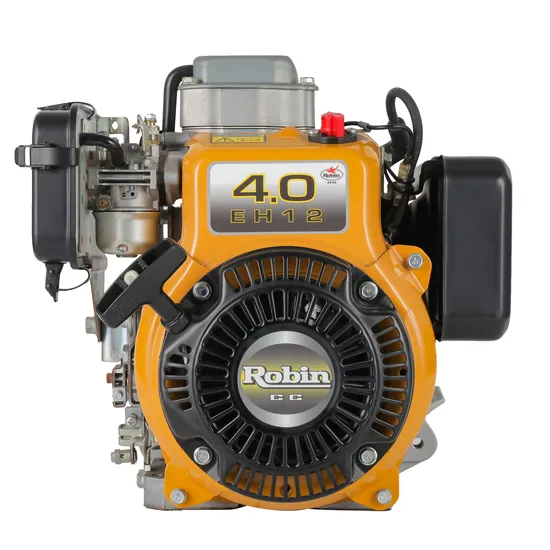

| EH12 |
| Type | Air-cooling,4-stroke,single cylinder OHV,horizontal PTO shaft |
| Bore*Stroke(mm) | 60*43 |
| Piston Displacement(cc) | 121 |
| Continuous output KW(HP)/RPM | 7.5/2600 |
| MAX torque N.m/rpm | / |
| Direction of rotation | Counter clockwise as viewed from PTO shaft side |
| Fuel | Automobile gasoline |
| Fuel tank capacity liter(L) | / |
| Lubricant | Automobile oil class SE above grade,SAE 10W-30 |
| Lubrication oil capacity liter | 0.6 |
| Carburetor | Float type |
| Starter | Recoil starter |
| Ignition system | Pointless flywheel magneto type |
| Spark plug | B6ES |
| Govemor | Centrifugal flyweight type |
| Dry weight(KG) | 15 |
| Gross weight(KG) | 16 |
| Dimension length*width*height(mm) | 286X330X334 |
Factory
Fujirobin (Changzhou) Machinery I/E Co.,ltd is a professional Industrial and Trading Company ,which dealing with gasoline engine,gasoline generator set, water pump set,gasoline spare parts,construction machinery,gardening machinery. Located in the economically developed city - Changzhou, Jiangsu
Our company have over 30 staffs,more than 10 management and technical people.Our company has continuously improved quality management and assurance system, and has passed ISO9001:2008, SGS, CE and other certifications.
The main products: gasoline engine,gasoline generator set, water pump set,gasoline spare parts,construction machinery,gardening machinery. EY series are famous in the world,suitable for a variety of machines.Our sales market covers more than 20 provinces and cities, and are exported to the Middle East, Southeast Asia, Europe, South America, India and so on.
Since the company is established,our business philosophy is"excellent technology,high quality products,perfect service".Every product would be tested one by one before packing.
>>
