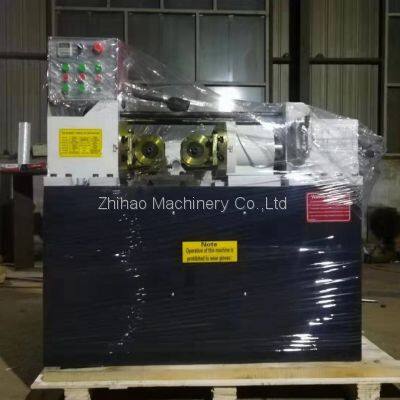

Thread rolling machine in Vietnam
Introduce of vietnam thread rolling machine:
Automatic vietnam thread rolling machines is mainly used in the construction of ribbed steel bar straight screw thread processing, is to achieve reinforced straight thread connection process of key equipment.
Automatic vietnam thread rolling machine consists of frame, clamp, guide, slide, reducer, stripping rib rolling head, feeding mechanism, automatic opening and closing mechanism, stroke limit structure, cooling system, electrical control box and control system.
Technical parameter of thread rolling machine in Vietnam:
Model Z28-80 two roll threading machine
Rolling thread range Diameter 5-48mm
Roller size range Outdiameter 120-170mm
Hole 54mm Max width 100mm
Thread pitch 0.5-4mm
Spindle Angle ±8°
Max rolling pressure 160kn
Spindle drive power 4.0kw
Spindle RPM 37/46/63/79rpm
Hydraulic transmission power 2.2kw
Dimension 1520*1400*1450mm
Weight 1600kg
Any more questions for thread rolling machine, pls contact freely.
