Running Capacitor for Energy Saving Lamps, High Temperature, Long Life

Product Description

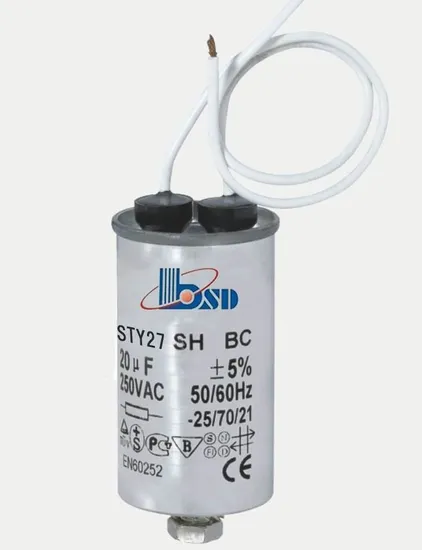

light cbb80 sh capacitor
Capacitance: 2 to 60uF
Capacitance tolerance: +/-5% +/-10%
Working voltage: 250 to 630VAC
Temperature range: -40 to +105 degrees Celsius
Lead material: quick fitting with bolt or AMP 250 tin-plated brass QCs
Outer shape: UL 94 V-O fire-retardant round plastic case or aluminum can and epoxy-resin sealed.

Features:
1, Small, light weight
2, Very low loss, long lifespan, good self-healing
3, High insulation resistance, safety and stable.
4, Built-in the explosion-proof device and discharge resistance
5, Used for grille lamps or energy-saving lamps
Structure:
1). The capacitor body is convoluted with metallized film.
2). The container is adoptted flame & temperature resistant engineering plastic or aluminum, etc metal material. It is enveloped with epoxy resin.
3). The install part is screw at bottom of container or double hanging hook.
4). Connection terminals: Plastic-sealed wire, fast connected terminal and discharge resistance.
5). We can design the particular specification and connection terminal according to clients' requirement.

Application:
Used for AC electronic power system at 50HZ(60HZ). Especially for fluorescent lamps, efficient metal-halogenide lamps for debase current in circuit and save electric energy.

Items	light cbb80 sh capacitor
Capacitance	2 to 60uF
Working voltage	250 to 630VAC
standard	IEC61048&IEC61049
Material	Plastic Can or Al Can Design

---
