Product Details
Product Description
Product Description

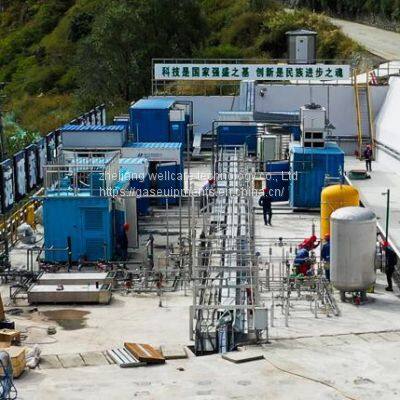

Series 1-1000NM3(5MW) Skid-type middle pressure water electrolysis hydrogen generator
The hydrogen water generator consists of main equipments, auxilliary equipments and electric control equipments.
1. Main equipment: electrolyzer, gas-lye separation skid, gas purification skid
2. Auxiliary equipment: feed water tank, alkali tank and feed water pump
3. Electric control equipment: rectifying transformer, rectifier panel, control panel, distributed panel
4. The type of electrolyzer: Bi-polar filter
5. Application: power plant, elcectronic, metallurgy, aviation, chemical industry, H2 fuel cell, new energy, green hydrogen, green ammonia etc.
Since 1978, we have been focusing on hydrogen production by water electrolysis, serving industry and new energy, contributing to global carbon neutrality.
Product Parameters
| Hydrogen capacity, single electrolyzer (stack) | 1 - 1200Nm3/h |
| Oxygen capacity | 600Nm3/h |
| Hydrogen purity, electrolyzer outlet | 99.9% |
| Hydrogen purity, purifier outlet | 99.999% |
| Oxygen in Hydrogen | 1ppm |
| Dew point | -80 ºC |
| Working pressure | 6 - 32 Bar g |
| DC power consumption | 4.6 kW.h/Nm3 H2 |
| AC power consumption | 5 kW.h/Nm3 H2 |
| Control mode | PLC, DCS, etc. |
| Service life | >20 years |
>>
