800kVA 1000kVA 1500kVA 2000kVA Container Industrial Cummins Diesel Generator

Product Description

Diesel generator set
All design for open, Silent, Supper silent, Soundproof, Trailer, container type 1.Engine brand : USA brand, UK brand, Volvo, mitsubishi,MTU,Deutz , LovoL , Lister Petter, Doosan, Shangchai, Yarman, Foton-Isuzu, Xichai, SDEC, Weichai, MTU, Ricardo, Jichai.and others
2. Alternator - Optional USA brand Leroy Somer, Marathon, JET, Mecc alte.
3.System: control system, ATS system, remote control system, parallel operation system,
4.Control panel : Smartgen , Deepsea,alte
including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF25
5.Radiator :Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
6.Canopy :Generator diesel High-quality steel are thickness canopy -- 2MM to 6MM
7.Material: high density sound-absorbing material -- sound insulation, fireproofing
8.Battery:Generator diesel 12V/ 24V DC battery with charger, battery connects wire
9.Fuel tank:Generator diesel 10-12 hours fuel tank with fuel indicator, long time for working.
10.Protection :Genset High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
11.New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
12.design:Generator diesel Beautiful & practicably design, Bottom hole for forklift, water outlet & oil outlet for easy maintenance
13.Door : Double open door on both sides of the Gensets.Spacious doors can check for every part of the engine and alternator. Part 1. Specification of all USA brand engine diesel generator set
1.50hz USA brand engine diesel generator set data sheet

Model	380V / 50Hz / 1500RPM				USA brand Diesel Engine - 50Hz				Alternator
	Standby output		Prime Output		Model	No. of Cylinder	Displacement	Fuel Consumption of Full Load	Stanford
	KVA	KW	KVA	KW			(L)	(L/H)
C-28	28	22	25	20	4B3.9-G1	4L	3.9	6.3	PI144E
C-33	33	26	30	24	4BT3.9-G1	4L	3.9	6.7	PI144G
C-41	41	33	38	30	4BT3.9-G1	4L	3.9	8.3	PI144J
C-55	55	44	50	40	4BTA3.9-G2	4L	3.9	11.7	UCI224D
C-66	66	53	60	48	4BTA3.9-G11	4L	3.9	13.8	UCI224E
C-80	80	64	73	58	4BTA3.9-G11	4L	3.9	16.2	UCI224F
C-94	94	75	85	68	6BT5.9-G1	6L	5.9	19.5	UCI224G
C-110	110	88	100	80	6BT5.9-G1	6L	5.9	22.9	UCI274C
C-125	125	100	114	91	6BTA5.9-G2	6L	5.9	25.5	UCI274D
C-143	143	114	130	104	6BTAA5.9-G2	6L	5.9	29.5	UCI274E
C-165	165	132	150	120	6BTAA5.9-G12	6L	5.9	34.8	UCI274F
C-175	175	140	160	128	6CTA8.3-G1	6L	8.3	35.7	UCI274F
C-193	193	154	175	140	6CTA8.3-G1	6L	8.3	41.2	UCI274G
C-220	220	176	200	160	6CTAA8.3-G2	6L	8.3	43.3	UCI274H
C-250	250	200	225	180	6LTAA8.9-G2	6L	8.9	47.8	UCDI274J
C-275	275	220	250	200	6LTAA8.9-G3	6L	8.9	53	UCDI274K
C-275	275	220	250	200	NT855-GA	6L	14	52.3	UCDI274K
C-344	344	275	313	250	NTA855-G1B	6L	14	68.3	HCI444ES
C-385	385	308	350	280	NTA855-G2A	6L	14	72	HCI444E
C-413	413	330	375	300	NTAA855-G7	6L	14	83.5	HCI444FS
C-440	440	352	400	320	6ZTAA13-G2	6L	13	87	HCI444F
C-500	500	400	450	360	6ZTAA13-G4	6L	13	89.5	HCI544C
C-500	500	400	450	360	KTA19-G3	6L	18.9	95.1	HCI544C
C-550	550	440	500	400	QSZ13-G3	6L	13	96.5	HCI544D
C-550	550	440	500	400	KTA19-G4	6L	18.9	97	HCI544D
C-633	633	506	575	460	KTAA19-G6	6L	18.9	113	HCI544E
C-650	650	520	585	468	KTA19-G8	6L	18.9	126	HCI544E
C-715	715	572	650	520	QSKTAA19-G3 NR2	6L	18.9	145	HCI544F
C-825	825	660	750	600	KTA38-G2	12V	37.8	167	LVI634C
C-880	880	704	800	640	KTA38-G2B	12V	37.8	169	HCI634G
C-1000	990	792	900	720	KTA38-G2A	12V	37.8	196	HCI634H
C-1100	1100	880	1000	800	KTA38-G5	12V	37.8	209	HCI634J
C-1250	1250	1000	1125	900	KTA38-G9	12V	37.8	210	LVI634G
C-1375	1375	1100	1250	1000	KTA50-G3	16V	50	254	LVI634G
C-1540	1540	1232	1400	1120	KTA50-G8	16V	50	289	PI734B
C-1650	1650	1320	1500	1200	KTA50-GS8	16V	50	309	PI734C

2.60hz USA brand engine diesel generator set data sheet

Model	480V/ 60Hz / 1800RPM				USA brand Diesel Engine - 60Hz				Alternator
	Standby output		Prime Output		Model	No. of Cylinder	Displacement	Fuel Consumption of Full Load	Stanford
	KVA	KW	KVA	KW			(L)	(L/H)
C-33	33	26	30	24	4B3.9-G2	4L	3.9	8.6	PI 144E
C-44	44	35	40	32	4BT3.9-G2	4L	3.9	10	PI 144H
C-66	66	53	60	48	4BTA3.9-G2	4L	3.9	15.4	UCI224D
C-80	80	64	73	58	4BTA3.9-G11	4L	3.9	16.3	UCI224E
C-94	94	75	85	68	4BTA3.9-G11	4L	3.9	20.1	UCI224F
C-110	110	88	100	80	6BT5.9-G2	6L	5.9	23.9	UCI224G
C-125	125	100	114	91	6BTA5.9-G2	6L	5.9	25.4	UCI274C
C-140	138	110	125	100	6BTA5.9-G2	6L	5.9	29.7	UCI274D
C-180	176	141	160	128	6BTAA5.9-G12	6L	5.9	37.8	UCI274E
C-200	200	160	180	144	6CTA8.3-G2	6L	8.3	39.9	UCI274F
C-220	220	176	200	160	6CTAA8.3-G2	6L	8.3	44	UCI274G
C-250	250	200	225	180	6LTAA8.9-G2	6L	8.9	50	UCI274H
C-275	275	220	250	200	6LTAA8.9-G3	6L	8.9	58.5	UCI274H
C-344	344	275	313	250	NTA855-G1	6L	14	70.1	UCDI274K
C-380	380	303	344	275	NTA855-G1B	6L	14	70.5	HCI444D
C-413	413	330	375	300	NTA855-G3	6L	14	85.1	HCI444D
C-440	440	352	400	320	6ZTAA13-G2	6L	13	92.8	HCI444ES
C-500	500	400	450	360	6ZTAA13-G4	6L	13	95.2	HCI444FS
C-550	550	440	500	400	QSZ13-G3	6L	13	96.5	HCI444F
C-646	646	517	588	470	KTAA19-G5	6L	18.9	134	HCI544D
C-750	750	600	688	550	QSKTAA19-G3 NR2	6L	18.9	151	HCI544E
C-825	825	660	750	600	KTA38-G	12V	37.8	147.4	HCI544FS
C-1000	1000	800	900	720	KTA38-G2	12V	37.8	195	HCI634G
C-1100	1100	880	1000	800	KTA38-G2A	12V	37.8	210	HCI634H
C-1238	1238	990	1125	900	KTA38-G4	12V	37.8	229.5	HCI634J
C-1430	1430	1144	1300	1040	KTA50-G3	16V	50	281.5	HCI634K
C-1650	1650	1320	1500	1200	KTA50-G9	16V	50	313.2	PI734A

Part 2. engine diesel generator set Detail pictures

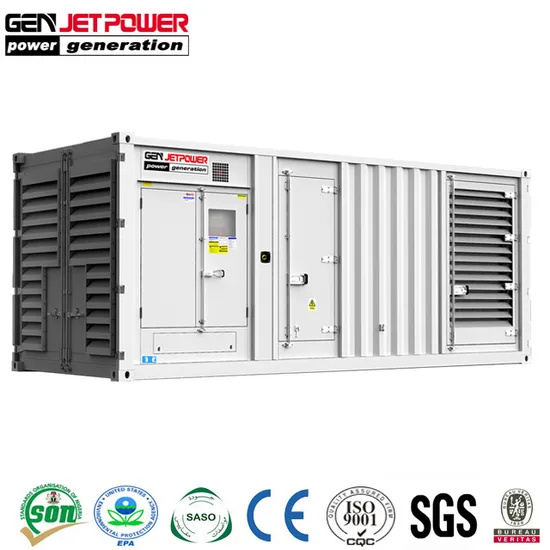

1. open type and container type diesel generator Picture

2.silent (canopy) type diesel generator set pictures
Power range from 10kva/8kw -2500kva/2000kw
3.Mobile trailer type diesel generator set pictures
Small power 2 wheels trailer, big power use 4 wheels trailer
Part 3: Diesel generator set description

main standards	GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard
Prime output power	from 5KVA to 2500KVA
Rated voltage	120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional
Generator Phase and connecting	3 phase, 4wire
Rated frequency	50Hz@1500rpm or 60Hz@1800rpm
Alternator excited type	Brushless, self excited or PMG optional
Alternator Insulation	Class H
Alternator Protection	IP21 ~ IP23
Voltage regulation	AVR automatic control 1%
Altitude above sea level	≤1000 meters
Ambient air temperature	≤40°C
Relative air humidity	≤ 90%

Part 4 :Our advantages for diesel generator set1.Generator diesel High-quality steel are thickness canopy -- 2MM to 6MM
2.Generator diesel high density sound-absorbing material -- sound insulation, fireproofing
3.Generator diesel 12V/ 24V DC battery with charger, battery connects wire
4. Generator diesel 10-12 hours fuel tank with fuel indicator, long time for working.
5. Genset High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
6.New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7.Generator diesel Beautiful & practicably design, Bottom hole for forklift, water outlet & oil outlet for easy maintenance
8. Double open door on both sides of the Gensets.Spacious doors can check for every part of the engine and alternator.
Part 5:Warranty & Certification warranty : one year or 1000 hours(diesel generator set ) whichever reach first from exfactory date.
1. During the guarantee period-
ur will provide the free easydamageable spare parts of alternator caused by our quality of production or raw material.
2. After expiration-
our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
Certification: CE, ISO , SASO , EPA , and the others
Part 6:Our Company FUZHOU JET ELECTRIC MACHINERY CO., LTD is a leadind manufacturer focus on Gasonline Generators, Disel Generators, Pump, Motor,Garden Machines. The factory is located in Fuan City Fujian provice, which is a well-konw electrical and machine city in China. For more convenient and efficient business, we set up company in HONGKONG and FUZHOU CITY.

---
