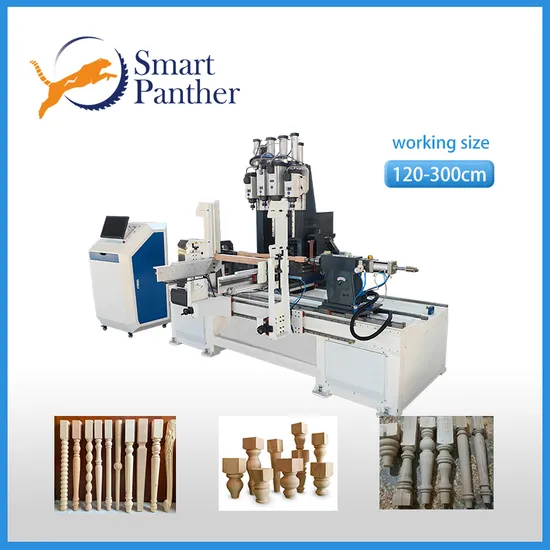

SP1203-4 Turning & milling CNC woodworking lathe machine for wood chair leg

Product Description

Product Details
CNC Solid Wood Cutting Machine

Specifications
Maximum Processing Size		1200mm×300mm
Spindle Motor		7.5KW*2+6KW*2 of Changchuan (CC+)
Drawing Software		CDR, Artcrm, CAD, etc.
Control System		Weihong CNC Control System
Rack		High-precision Taiwanese Rack
Guide Rail		HIWIN Taiwan
Reducer		Shimpo Japan
Inverter		7.5kw+5.5kw by Hpmont
Servo Motor		Delta Taiwan
Working Air Pressure		0.6 - 0.8mpa
Overall Dimensions		2800*2200*2400mm

Product Main Features
Advantage:
Automatic loading, milling, special-shaped customization, flat carving, rotary carving and sanding are all completed in one stop.
Excellent surface quality of the processed materials, with a wide range of processing capabilities.
Minimal machining errors can maximize the conservation of wood.

Application: Solid wood furniture factories, billiard table legs, stair case columns, sofas, chairs, etc

	Weihong CNC Control System Highly integrated controller and driver to control the motor for high-speed, precise, and stable operation. The control system console is independent of the chassis, greatly improving operation safety.
	HIWIN Taiwan Guide Rail Slider Adopts HIWIN Taiwan guide rails made of special metal materials, with high wear resistance and rigidity, which can minimize error losses and improve processing accuracy. Medium-preload precision sliders can extend the service life of linear guide rails.
	High-precision Taiwanese Rack The precise helical rack and pinion feature high precision and low noise. The high-precision rack and pinion ensure the stable movement of the machine at high driving speeds.
	7.5kw Spindle of Changchuan (CC+) Equipped with high-temperature resistant ceramic bearings, with high precision and wear resistance, capable of with standing heavy cutting processing. The internal and external dual air-cooling method greatly extends the spindle's service life.
	Haipu Mont Inverter The 15kw inverter has high low-speed torque control accuracy, strong anti-interference ability, and can automatically identify motor parameters to ensure the stability and safety of the system.
	Delta Servo The X, Y, and U axes all adopt Delta Taiwan servo motors, with high reliability and strong anti-interference ability.
	Planetary Reducer The reducer is made by Shimpo Japan, featuring high torque, low clearance, and easy operation. The precision planetary reducer has a small volume, high torque, and high transmission efficiency.
	Automatic Tool Setting Gauge The equipment is equipped with a tool setting gauge, which can effectively eliminate the problems of errors and low efficiency caused by manual tool setting.

Company Profile
About US

QCM Machinery was established in 1970 and have been specializing in production of woodworking machinery for more than 50 years now.
We have our own casting workshop, and more than 300 sets of modern CNC machining equipment and testing equipment, such as Okuma, Mazak, Mitsubishi. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.
Choose our machinery, to help you improve productivity, processing quality, and profit.
Advantages and Service
1. Lead Time?
Within 15 days for regular stock machine after receiving down payment.
45-60 days for customized machines,
60-90 days for busy season.
2. Warranty ?
3 years for machine, 3 years for the core components.
3. Spare Parts?
Unified standards spare parts are available anytime.
4. Voltage?
Regular voltage 380v, 50hz; customized voltage is available.
5. After-sale Service?
24 hours technical support by email, call and video.
our engineer is available to visit at your expenses of accommodation and round tickets.
6. Why us?
1). 50 years experience in woodworking machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity. Control quality from raw material.

---
