US$20,000.00-75,000.00
|
1 Unit
(MOQ)
|
Basic Info.
Carrying Capacity
Light Level
Running Mode
Aerial Work Platform
Feature
Aerial Work Platform
Structure
Aerial Work Platform
Installation
Aerial Work Platform
Type of Work
Aerial Work Platform
Turntable Swing
360continuous
Hydraulic Tank Capacity
150L
Production Capacity
100PCS/Month
Product Description

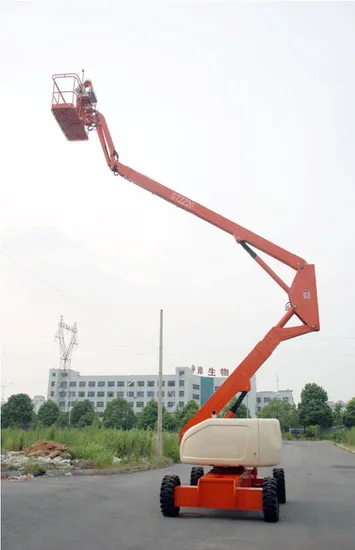

Gtzz22z articulated boom lift with CE
Main spec:
Model gtzz 22z
Measurements metric us
Working height maximum 24.30m 79ft8in
Platform height maximum 22.60m 74ft
Horizontal reach maximum 15.80m 51ft10in
Lift capacity (restricted) 227kg 500ibs
Platform rotation 180
Turntable swing 360continuous
Turntable tailswing 0.76m 2ft6min
Drive speed -stowed 4.8km/h 3.0mph
Gradeability -stowed (2WD) 30
25
Gradeability -stowed (4WD) 45
Turning radius - inside 2.13m 7ft
Turning radius outside
Turning radius - axle extendeded outside 4.42m 14ft6in
Controls 12V DC proportional
12V DC proportional
Power source cummins b3.3na-c60 4 60HP (45kw)
Perkins 400 61HP (45.5kw)
Auxiliary power unit 12V DC
12V DC
Hydraulic tank capacity 151.4L 40gal
Fuel tank capacity 113.6L 30gal
| M ODEL GTZZ 22Z |
| MEASUREMENTS Metric US |
| Working height maximum | 24.1m | 79ft |
| Platform height maximum | 22.4m | 73ft6in |
| Horizontal reach maximum | 13.3m | 43ft |
| A | Platform length | 0.76m | 2ft6in |
| B | Platform width | 1.83m | 6ft |
| C | Height-stowed | 2.82m | 9ft3in |
| D | Length-stowed | 10.1m | 33ft2in |
| E | Width | 2.48m | 8ft |
| F | Wheelbase | 2.6m | 8ft6in |
| G | Ground clearance-center | 0.33m | 1ft |
| PRODUCTIVITY |
| ()Lift capacity (restricted) | 230kg | 507lbs |
| Platform rotation | 160° |
| Jib rotation | 135° |
| Turntable Swing | 360°continuous |
| Turntable tailswing | 0 | 0 |
| Drive speed -stowed | 6.3km/h | 3.9mph |
| Travel speed -raised or extended | 1.1km/h | 0.68mph |
| Gradeability -stowed | 30%
25% |
| Turning radius - inside | 3.0m | 9ft10in |
Turning radius -outside
Turning radius - axle extendeded outside | 5.2m | 17ft |
| Controls | 12V DC Proportional
12V DC Proportional |
| Solid tires/Foam filled | 33×12-20 |
| POWER |
| Power source | Cummins B3.3-C60(45kw)
Perkins 400 61hp (45.5kw) |
| Auxiliary power unit | 12V DC
12V DC |
| Hydraulic tank capacity | 250L |
| Fuel tank capacity | 100L |
| WEIGHT *** |
| 2 2WD | 10350kg | 22817lbs |
| STANDARDS COMPLIANCE EN280\JG/T5101\Q/ADZV001-2008 |
>>
