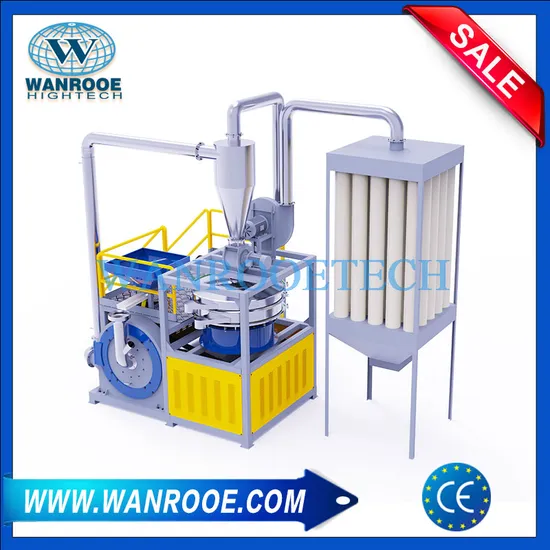

Waste PP/ LDPE / PE Plastic Material Grinding Disc Granulator Miller Machine

Product Description

Waste PP/ LDPE / PE Plastic Material Grinding Disc Granulator Miller Machine
Applications:
The pulverizer range is designed for pulverizing of semirigid, brittle, and impact resistant materials where a powdered product is required. Granulate of size 6-8 mm is fed via Vibro feeder to the rotating high speed serrated discs to produce a powder product in the required micron size and where the final size is determined by the adjustable disc space and also the vibrating machine which are installed on the pulverizer. Typical applications are the pulverizing of LDPE, HDPE, UPVC, PC, PP, and various other plastics.
PNMF series Pulverizer Machine Design:
The range is extremely high output units which can be equipped with automatic temperature control. The material to be pulverized is fed centrally between a fixed and a high Speed rotating pulverizer disc with centrifugal effect carrying the material through the processing zone before being discharged from the machine pneumatically. The pulverizers operate Without an internal screen and the particle size of the product is determined by the type of material being processed, the disc construction, and the processing gap between the discs. Depending on final product requirements a screening machine with course reefed unit can be simply incorporated into the system.
Technical Features:
1. The new disc design is with high quality, strong resistance and the life of this grinding disc is double the ordinary ones.
2. The newly designed professional bearings are with a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time of machine operation and engineering control.
3. Easy installation and maintenance, just open the door to clean up.
4. The whole milling process is sealed, without dust leakage.
5. Full automatic design, automatically feeding, discharging, and sorting.
6. Grinding gap adjustment is simple, just use the feeler gauge and adjust bolts can be fine-tuning.
7. The mill uses the water and wind double cooling system.
8. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.
Features:
Simple adjustment of cutting gap
Low drive power
High output
Innovative efficient design
Wide range of accessories
Easy temperature control

Advantages
1. The long service life of the discs between resharpenings
2. Fast and easy replacement and adjustment of discs
3. Low residence time means lower thermal stress on the process material
4. High throughput capabilities
Technical Parameters of PE Powder Making Machine:

Model	PNMF-300	PNMF-400	PNMF-500	PNMF-600	PNMF-800
Disc Diameter(mm)	300mm	400mm	500mm	600mm	800mm
Dimension L*W*H(mm)	3700*1500*3700	3800*1600*3800	3900*1700*3900	4000*1800*4000	4300*1900*4300
Main Motor(kw)	11-15	22-30	30-37	45-55	75-90
Air Blower(kw)	3	4	5.5	5.5kw	7.5
Vibrating Motor (kw)	0.55	0.55	0.75	1.1	1.1
Air Lock Motor (kw)	0.75	0.75	0.75	0.75	0.75
Capacity (kg/h)	30-50	50-120	120-200	200-350	400-600

Customer Feedback:
Our Service
1. One year guarantee for whole machine
2. 24 hours technical support
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.

---
