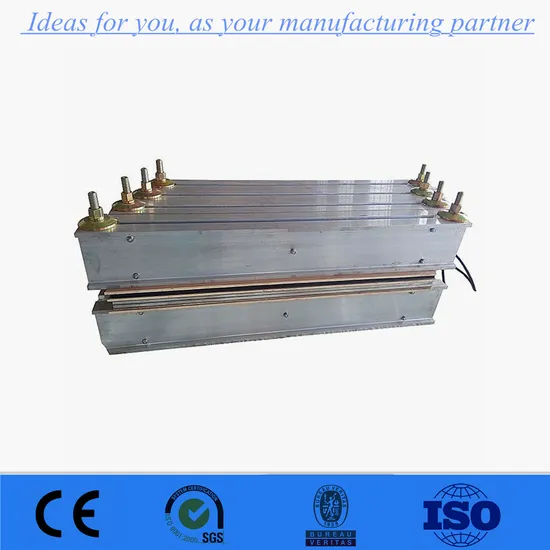

Conveyor Belt Vulcanising Press Machine, Belt Hot Splicing Machine

Product Description

Product Description

pecification Sheet of Antai Vulcanizing Machine
Model	Width of Conveyor Belt(mm)	Rectangle Spec (mm)	Heat Plate Size (mm)	Power(KW)	Machine Size(mm)	Machine Weight(kg)
ZJL-650	650	650*830	830*800	10.8	1322*830*585	440
		650*1000	1000*800	13	1384*1000*585	530
ZJL-800	800	800*830	830*995	12.7	1492*830*585	515
		800*1000	1000*995	15.4	1554*1000*585	630
ZJL-1000	1000	1000*830	830*1228	15	1692*830*585	600
		1000*1000	1000*1228	18	1754*1000*585	715
ZJL-1200	1200	1200*830	830*1431	18.2	1922*830*750	800
		1200*1000	1000*1431	22	1984*1000*750	912
ZJL-1400	1400	1400*830	830*1653	20.6	2142*830*750	885
		1400*1000	1000*1653	24.6	2204*1000*750	1050
ZJL-1600	1600	1600*830	830*1867	22.8	2382*830*795	1130
		1600*1000	1000*1867	27.2	2444*1000*795	1325
ZJL-1800	1800	1800*830	830*2079	25	2592*830*900	1420
		1800*1000	1000*2079	30	2654*1000*900	1630
ZJL-2000	2000	2000*830	830*2303	27.4	2792*830*900	1560
		2000*1000	1000*2303	33	2854*1000*900	1824
ZJL-2200	2200	2200*830	830*2478	30	2992*830*980	1720
		2200*1000	1000*2478	36.2	3054*1000*980	2030

Specifications vulcanizing press machine
1)Product Type:conveyor belt
2)Related voltage: 380 v(660v). 50 Hz
3)the electric power output:35KW

a) It's most important for the conveyor belt which is used for heavy-duty and long distance material handing.

b) The special equipment for conveyor belt repairing and jointing.

c)Advantages
The quality of the jointing directly effect the working life & working efficiency.It's most important for the conveyor belt which is used for heavy-duty and long distance material handing
d) Fast heating, steady heating temperature

e)Specification
LD technical performance
Suitable for conveyor width:680mm-2400mm
heating plate length: 600mm,900mm and others
Cementing angle:0°:16.7°(according the client's requirement)
Curing working surface temperature≤165°C
Warming time: less than 30 min
Pressurization method: Aluminum beams+ Pressure mold box
Curing pressure 10Bar-12Bar
Cooling way: Fast water cooling
Application of conveyor belt thickness≤40mm
Related voltage: 380v (660V)(AC 3PH 50Hz)
