US$500.00-8,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Drilling Capacity
16 mm 25 mm 32mm 45 mm
Vertical Milling
10 /13/ 22 /28 mm
Spindle Travel
80mm-110mm
Spindle Taper
Mt3 Mt2 Mt4
Spindle Speed
320-3300 Rpm ,290- 2150rpm, 50-2500 Rpm
Motor
550W 3phase or 1 Phase
Transport Package
65X58X77 Cm
Specification
drilling 16mm
Production Capacity
100 Sets/ Years
Product Description

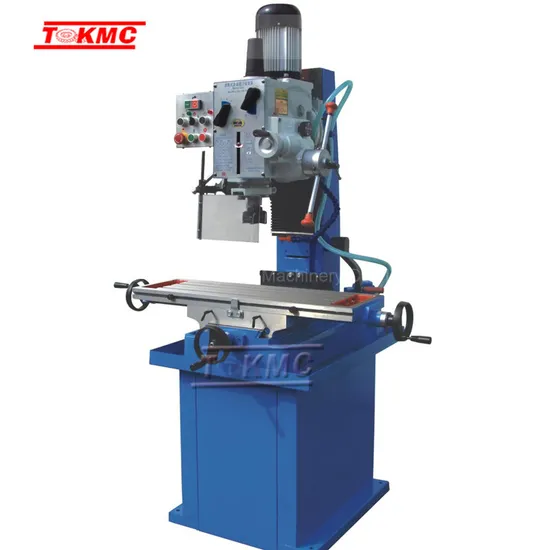

zx7045 drilling milling machine /drilling and milling machine zx7016 ZX7032
Feature :
1) gear hardened ,large torque
2) ZX7045 type can be coolant system, wide spindle range , auto feeding feed
| Model | | ZX7032 | ZX7045 | ZX7045B1 |
| Max. Drilling capacity | mm | 31.5 | 45 | 45/32 |
| Max. face Milling capacity | mm | 80 | 80 | 80 |
| Diameter of vertical milling | mm | 22 | 28 | 28 |
| Spindle travel | mm | 130 | 120 | 110 |
| Distance spindle axis to column generating line | mm | 202 | 260 | 260 |
| Max. Distance spindle nose to table | mm | 460 | 475 | 475 |
| Spindle taper | | MT3 | MT4 | MT4 R8 |
| Spindle speeds range | r/min | 100~2150 | 95~1600 | 50-1250
50-2500 |
| Spindle speeds series | | 12 | 6 | 6/12 |
| Dimension of worktable surface | mm | 730X210/ 820X240 | 820x240 |
| Table travel | mm | 450X170 540X170 | 540x170 |
| Overall height | mm | 1100 | 1050 | 1100 |
| Main motor | w | Single110 Triple 1500 | 1500 |
| G.W/N.W | kg | 285/250 | 318/278 | 405/360 |
| Packing dimension | cm | 86x74x116
97x77x116 | 86x74x116
97x77x116 | 104x77x116 |
Standard accessory:
drill chuck, arbor ,taper sleeve, drift, wrench, draw bar, cutter 80mm
>>
