CE Farm Home Construction Agricultural Micro Wheel Used Excavation Hook Crawler Hydraulic Garden Bagger Digger Mini Backhoe Small Excavator

Product Description

Hot Sales
Product Description
Introduction Of Farm Home Garden Construction Agricultural Crawler Hydraulic Garden Digger Mini Escavator Samll Excavator
Mini Excavators with compact dimensions can easily drive through narrow passages and doors, small radius of gyration, adjustable dozer blade, easy to disassemble simple shed, 360 degree rotation, high configuration, high performance, small size, light weight, good transportation, low fuel consumption, high efficiency, stable performance, beautiful appearance, safe and reliable, operation Flexible and convenient, and wide application.
Equipped powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs, and a wide range of adaptability. Reducing maintenance and operating costs, improving the degree of mechanization.zmwm21

Product Parameters
Parameter Of Farm Home Garden Construction Agricultural Crawler Hydraulic Garden Digger Mini Escavator Samll Excavator

Model Size(mm) Specification	ZM08	ZM09	ZM10A	ZM12	ZM13	ZM15	ZM17	ZM18	ZM23	ZM25
Weight (KG)	665	680	775	790	1000	1500	1125	1285	1800	2500
Transport Length	2600	2500	2200	2200	2000	2350	2420	2600	2360	3500
Package Length (a)	2800	2700	2800	2800	2960	2890	2955	3360	3560	4400
Total Width (b)	720	720	925	925	925	1100	1110	1300	990/1330	1300
Total Height (c)	2000	2000	2000/2175	2000/2175	2410	2240	2215	2344	2405	2300
Turntable Width (d)	700	700	805	805	905	990	940	1050	996	1200
Chassis Total Width (e)	720	720	925	925	925	1100	1110	1300	990	1300
Track Width (f)	150	150	180	180	180	180	180	180	230	230
Wheelbase (g)	860	860	906	906	915	1082	1082	1082	1230	1526
Track Gauge (h)	550	550	742	742	742	895	895.5	1120	760/1070	1040
Platform Ground Clearance (i)	350	350	370	370	370	400	400	400	435	570
Min. Ground Clearance (j)	100	100	127	127	127	140	140	145	145	240
Max. Digging Height (A)	2460	2800	2500	2500	2885	2690	2565	2880	3535	3200
Max. Unloading Height (B)	1730	1880	1700	1700	1974	1780	1670	2100	2445	2450
Max. Excavation Depth (C)	900	960	1580	1580	1813	1715	1730	2150	2270	2350
Max. Vertical Digging Depth (D)	340	430	1200	1200	1720	1585	1600	1760	1910	1740
Max. Digging Radius (E)	2490	2330	2900	2900	2676	3150	3215	3330	3910	3100
Min. Rotation Radius (F)	1400	730	1450	1450	1450	1587	1495	1555	1600	2300
Standard Engine Brand	UP 192F	UP 192F	UP 192F	UP 192F	UP 192F /Kubota	Kubota D722	Laidong LL380B-116A"	Changchai 390Q	Kubota 902	Laidong LL385-216B
Emission Standard	China II	China II	China II	China II	China II /Euro V	China IV /EPA Tier 4 /Euro V	China II	China II	EPA/CARB TiAl4/Eu StiPeV/China GB3	China II
Engine Power (KW)	8KW/ 3600rpm	8KW/ 3600rpm	8KW/ 3600rpm	8KW/ 3600rpm	7.5KW/ 3600rpm	10.2KW /2500rpm	19KW/ 2200rpm	20KW/ 2300rpm	11.8KW / 2300rpm	29KW/ 2350rpm
Horsepower (HP)	11	11	11	11	11	15	26	27	16	40
Telescopic Side Swing	-	-	customised	customised	customised	Yes	-	-	Yes /chassis extension	Yes
Bucket size	300	300	400	400	400	400	400	400	500	500
Bucket Capacity (m3)	0.02	0.02	0.025	0.025	0.025	0.023	0.3	0.035	0.04	0.05
Cab	-	-	3500	3500	3500	4000	4000	4000	4500	4500
Air Conditioning	-	-	2000	2000	2000	2000	2000	2000	2500	2500
Optional Engine	Changchai,Kop,Bailitong,Lithium-ion battery,Electric motor				-	-	-	Laidong 385	Xin Chai 3B11	Changchai 390Q

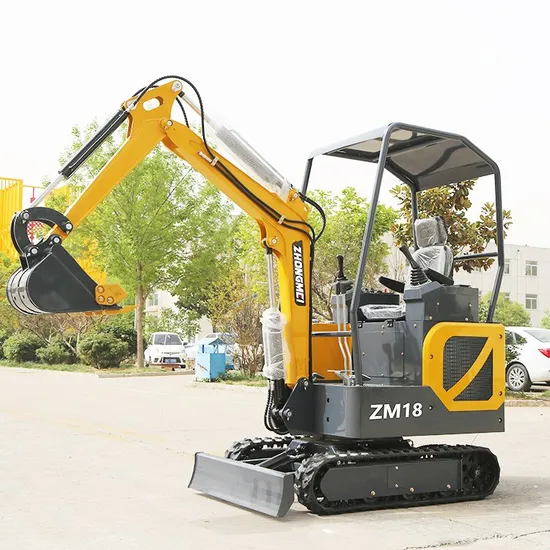

Detailed Photos
Photos Of Farm Home Garden Construction Agricultural Crawler Hydraulic Garden Digger Mini Escavator Samll Excavator
Our Advantages

---
