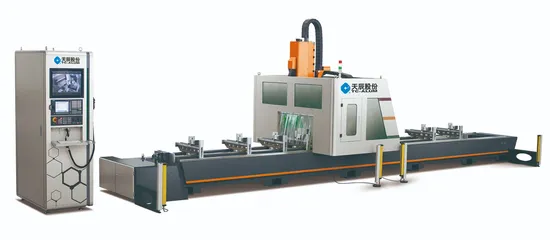

CNC Gantry Type 4 Axes High Speed Drilling Milling Center for Aluminum Profile Four Surface Machining Center

Product Description

CNC Gantry Type 4 Axes High Speed Drilling Milling Center for Aluminum Profile Four Surface Machining Center
1. Machine Features:
☆ Adopting Han's703 high performance CNC system, coordinated with three-dimensional programming software, with CAM software can edit program on the machine,perfectly realized the milling process.
☆ Adopting original imported high quality control system, servo motor. With high quality ball screw, linear guide rail pair, bearing and other parts to make sure a high processing accuracy.
☆ The fixture can be located freely.
☆ Double worktable can process two pieces or two types of profile, interactive loading without interfere each other.
☆ Equipped with 12 position cutting tool, and able to automatically changing tools.
☆ Adopting high speed electrical spindle imported from Italy, able to finished the process of any angle within ±90°, with extremely high working efficiency.
2.Technical Parameters:

Item	Specification
Longitudinal Travel(X Axis)	6800mm
X Axis movement speed	0~60m/min
Longitudinal Travel(Y Axis)	1200mm
Y Axis movement speed	0~30m/min
Longitudinal Travel(Z Axis)	660mm
Z Axis movement speed	0~20m/min
Spindle motor power Max.	8/9.6kW
Spindle rotation range	-90º~0º~+90º
Tool magazine	12 Tools, tool changes automatically under program control
Processing height Max.	350mm
Air source pressure	0.5~0.8MPa
Total Power	20kW
Fixture station No.	8
Positioning accuracy X Axis	≤±0.1mm
Positioning accuracy Y/Z Axis	≤±0.08mm
Repeated positioning accuracy	≤±0.05mm
Surface roughness	Ra12.5μm
Lubrication and cooling	Automatic oil lubrication, spray cooling
Worktable profile size(W*H*L)	500*350*6600mm
Overall dimension(L*W*H)	12000*2400*2600mm
Machine net weight	5500kg

3. lMain Outsourced Components:
☆ Control system: Siemens
☆ Motorized spindle: Italy HITECO
☆ Ball screw: HIWIN/PMI/ABBA/TBI
☆ Low voltage electrical equipment: Siemens
☆ Milling cutter: Germany Vermano

---
