Basic Info.




                                    Application
                                    Granules, Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid


                                    Application Area
                                    Chemical, Engineering & Construction, Pharmaceutical




                                    Main Material
                                    Stainless Steel


                                    Mixing Capacity
                                    500-1000L



                                    Speed Range
                                    60 R/min & Above






                                    Mixer Type
                                    Planetary Mixer



                                    Mixing Drum Shape
                                    Conical


                                    Operating Type
                                    Continuous Operating








                                    Production Capacity
                                    500 Pieces/Year







Packaging & Delivery




                                Package Size
                                150.00cm * 240.00cm * 400.00cm


                                Package Gross Weight
                                400.000kg





    Product Description

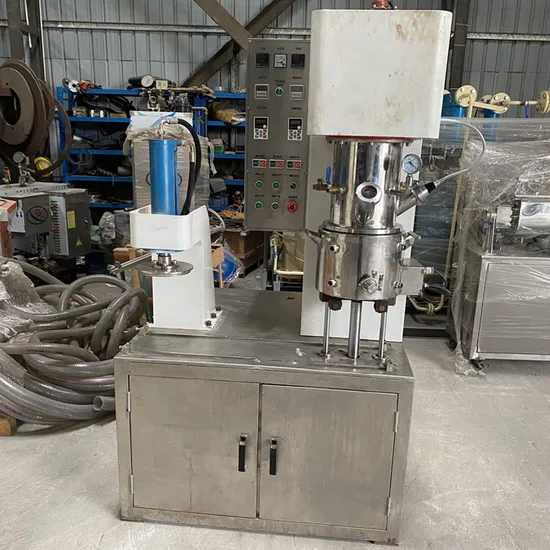

                                 Product Description    Double Planetary Mixer
               | Type | 100L | 200L | 300L | 500L | 650L | 800L | 1000L | 1500L | 2000L | 3000L |
           | Working volume (L) | 100 | 200 | 300 | 500 | 650 | 800 | 1000 | 1500 | 2000 | 3000 |
           | Design volume (L) | 140 | 280 | 400 | 665 | 800 | 1070 | 1320 | 1980 | 2550 | 3820 |
           | Mixing power (kw) | 7.5-15 | 15-22 | 22-37 | 30-45 | 37-45 | 37-55 | 45-90 | 55-110 | 75-132 | 90-160 |
           | Revolving speed (rpm) | 0-40 | 0-40 | 0-40 | 0-30 | 0-30 | 0-30 | 0-30 | 0-20 | 0-20 | 0-15 |
           | Rotating speed (rpm) | 0-72 | 0-72 | 0-72 | 0-55 | 0-55 | 0-55 | 0-55 | 0-36 | 0-36 | 0-28 |
           | Dispersing power(kw) | 11-18.5 | 18.5-22 | 30-37 | 37-45 | 37-45 | 45-55 | 55-75 | 75-90 | 90-110 | 110-132 |
           | Dispersing speed (kw)
 | 0-1450 | 0-1450 | 0-1450 | 0-1450 | 0-1450 | 0-1450 | 0-1200 | 0-1200 | 0-1200 | 0-1200 |

                                                                                                                  Double Planetary Mixer consists of low speed agitator and a high speed disperser, has good mixing, reacting, dispersing, dissolving effect, especially suitable for the dispersing and mixing of solid-liquid, liquid-liquid phase; It's quite fit for high viscosity product such as adhesives, silicone, Lithium battery slurry etc. due to its super strong output torque; The equipment has scraper which can scrape the bottom of the tank without dead corner or residue; also there are extrusion device and sliding rail to work
       together with this machine, so that realizing the integrated operation of mixing and discharging.
sigma mixer blades                                                                                                                            Screw Frame+Disperser+Scraper                                  Screw Frame+Scraper                                   Multi-layer Inclined Blade+Disperser
Double planetary mixer application scenarios
Recommended Products                                                                                                                                           Company Profile
The JCT machinery has been producing industrial mixing, dispersing, kneading.blending and drying for over 15 years since 2006. We take 'make the mixingmore easier' as our belief and purpose in order to increasing the durability anoapplied in varius industries including cosmestics, chemical, plastics, batteryslurry, inks, pharmaceuticals, platics, adhesives, sealant, electronic pastes andglues etc.
We design and customise for every unique project by starting with 3D craftexposion, Our reliable team of engineers, sales managers, marketing andproduct analyzers are always ready for solving your inquiry and question onapplications.
     JCT machinery now has over more than 10 product lines are ready for helpingyou find out best solution of your project including, silicone sealant, hot meltglue, battery slurry, rubbers and paint etc.
