Full Automatic 500ml Mineral Pure Drinking Water Bottling Production Line

Product Description

Product Description

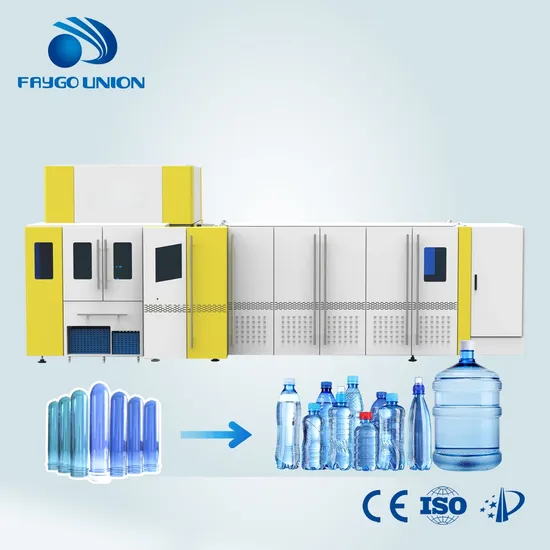

Faygo Union 2025 New Automatic Plastic Bottle Blowing Filling Capping 3 in 1 combiblock Machine
12000BPH~48000BPH Full Automatic Mineral Pure Drinking Water Bottling Line
Automatic Water Blowing Bottling Capping Machine introduction

This automatic water filling machine is ideal equipment to produce bottled drinking water, alcoholic beverage and other non-gas Liquid. Bottles size varies from 250ml-2000ml meanwhile few changeover is needed for differen bottle volumes. Machine is built by excellent stainless steel with high standard anti-corrosion. Machine design follows the Germany and Italy technical. Compared with the traditional machine, our machines is of high processing precision and more stable operation. The This series of filling machine capacity varies from 12000BPH to 48000BPH.
we focuses on mini linear blowing and rotating, saving plant area for you, such as CGX6-16-8 machine length is only 7 meters, width is only 1.6 meters. Suitable for small batch multi-specification customized water and other needs.
Our water filling machine features low water electricity consumption, small space occupation as well as easy operation. At the same time It improves the sanitary conditions and simplifies the maintenance. It can perfectly complete the function of automatic washing, filling and capping, which has been aproved by our clients as technical matured and quality product. Product Details
1. The automatic water filling machine use direct connection technology between air conveyor and in-feeding starwheel to substitute in-feeding screw and conveyor to ease the process of bottle-size-changing.
2. Neck-hanging technology is applied in bottle transportation of the automatic water filling machine. Instead of traditional starwheel, we use neck-hanging gripper to make bottle-size-changing easily , without equipment height adjustment ,only arch board and starwheel such little nylon parts need to be changed.
3. Specially-designed rinser grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution in this automatic water filling machine.
4. Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss.
5. Splint of starwheel using twist descending way to simplify the process of bottle-size-changing.
Product Parameters
Technical Data:

Model	CGX8-24-10	CGXX8-24-18	CGXX8-24-24
cavity	8	6	8
Filling valve	24	24	24
Screw cap head	10	18	24
Bottle volume(Max)	2000ml	2000ml	750ml
Bottle height(Max)	328	328	300
Bottle diameter (Max)	105	105	75
Speed	12000~24000BPH	24000~36000BPH	36000~48000BPH

Characteristic:
1.Intelligent contact screen, human design, easy operation.
2.High speed filling valve, avoid water leaking, accurate filling level control.
3.Program logic controller(PLC), easy for changing size or modifying parameters.
4.Pneumatic elements adopts all famous brand, stability and reliability.
5.Photo-electric sensing and pneumatic linking control, automatic protection for shortage of bottle.
8.Pneumatic executive control valve, high efficiency and safety.
9.Close positioning design, easy governing, suitable for packing of all sizes of bottles.
10. Machine is designed according to requirements of buyer's.
One Stop Station Services
1)Installation and Commissioning: After debugging the machine in seller's factory, after checking out and signature of two sides, then we can shipping the machine.
2)Warranty: We have 1 year warranty, and lifetime maintenance. Within one year, if there is some accessory going wrong, we will send at once, free of charge.
Company Profile
FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.
Q: All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q: What is the ability of your factory?
A: About 100 lines per month.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied first.

---
