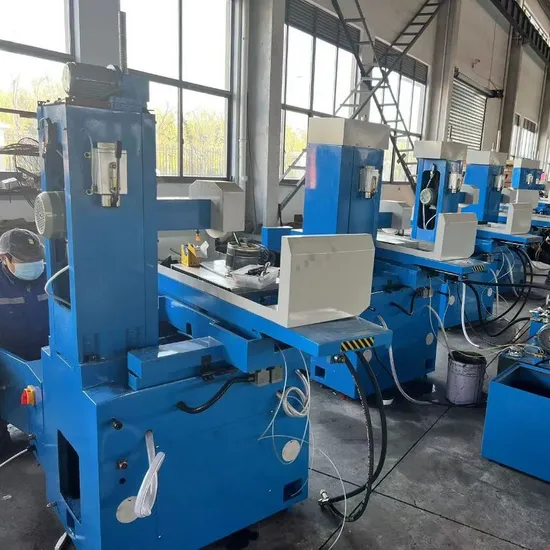

Automatic Hydraulic Surface Grinding Machine M230A+ Worktable 450X230

Product Description

Surface Grinder M230A+
Good quality and reasonable price
CE and ISO9001 certificate
M230A front and back is controlled by hand ,longitudianl movement by hydraulic
M230A+ front and back is controlled by motor ,longitudianl movement by hydraulic

Description			M230A	M230A+
G rinding Capacity: LX W XH		mm	450X230X330	450X230X330
Longitudinal table travel		mm	500	500
Cross table travel		mm	250	250
Max. Distance from the spindle centre to the worktable surface		mm	430	430
S afety load of bench ( in max )		kg	100	100
T able size		mm	450 X 230	450 X 230
T-slot		mmXn	12 X 1	12 X 1
B ench speed		m/min	3-23	3-23
Cross auto feed		mm	-	-
Cross rapid feed		mm	144	144
C ross handwheel	Per graduation	mm	0.0 2	0.002
	per revolution	mm	0.15	0.15
Grinding W heel size( DXWXd)		mm	200X16X31.75/32	200X16X31.75/32
S pindle Speed		R/min	2850	2850
V ertical fine adjustment revolution		mm	1	1
V ertical per fine adjustment graduation		mm	0.005	0.005
S pindle moter		kw	1.1	1.1
O verall dimensions: (LXWXH)		mm	1500X1180X1800	1500X1180X1800
Packing size(LXWXH)		mm	1580X1300X1950	1580X1300X1950
G/N weight		T	1.2 / 1.0	1.2 / 1.0

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
