US$8,000.00-15,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Swing Over Carriage
148mm
Max Length of Work Piece
450/700mm
Taper of Spindle Bore
Mt5
Z - Axle Travel
500/750mm
Diameter of Tailstock Sleeve
45mm
Travel of Tailstock Sleeve
120mm
Taper of Tailstock Sleeve
Mt3
Transport Package
Plywood Case
Product Description
CNC LATHE FEATURES:
The surface of guideway is delt with quenching and precision grinding, its precision has good stability
Simple manipulation and low maintenance cost

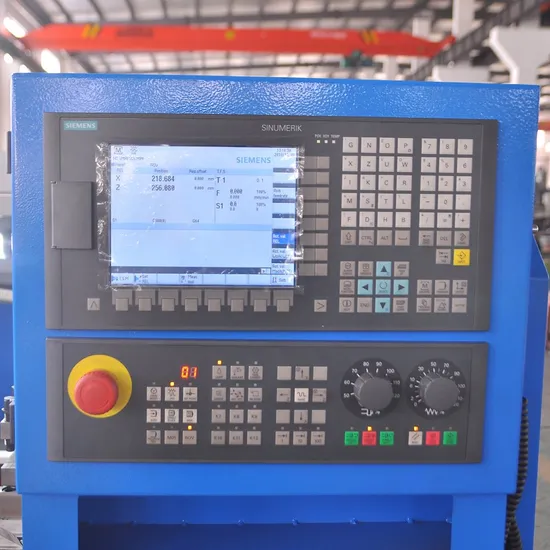

The CK6132 small 2 axis chinese cnc programmable lathe uses the design of mechanical and electrical integration, generous appearance beautiful, reasonable structure, easy operation. The machine adopts the integral bed foot, the stability is better. Wear-resistant cast iron after ultra-audio quenching treatment, to ensure the accuracy of the equipment and stability. The fully enclosed cover ensures that a drop of water does not leak out of the machine.
SPECIFICATONS:
| MODEL | CK6132×500/750 |
| Swing over bed | 330mm |
| Swing over carriage | 148mm |
| Max length of work piece | 450/700mm |
| Spindle bore | 38mm |
| Taper of spindle bore | MT5 |
| External taper of spindle | D1-4 |
| Spindle speed number | |
| Range of spindle speed | 100~875r/min 875~2500r/min |
| Power of main motor | 3kw |
| X - axle travel | 190mm |
| Z - axle travel | 500/750mm |
| X-axle rapid speed | 2.5m/min |
| Z -axle rapid speed | 5m/min |
| X-direction min setting unit | 0.01mm |
| Z-direction min setting unit | 0.001mm |
| Nos. of tool position | 4 Station |
| Max size of tool holder | 16×16mm |
| Diameter of tailstock sleeve | 45mm |
| Travel of tailstock sleeve | 120mm |
| Taper of tailstock sleeve | MT3 |
| Net weight of machine tool | 610/650kg |
| Gross weight of machine tool | 740/780kg |
| Sizes of package | 168×114×201cm/193×114×201cm |
>>
