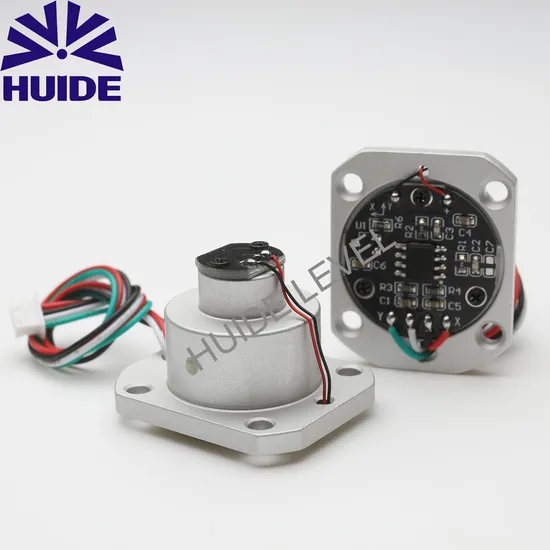

Dual-Axis Photoelectricity Angle Sensor Compensator for Analytical Balance

Product Description

Product Information
The photoelectric dual-axis level sensor, also known as a compensator, takes a high-precision level bubble as its core, detects the position of the bubble in the level bubble with a photoelectric sensitive element, and converts it into an analog voltage signal representing the offset position of the X/Y dual-axis. With high precision and good temperature stability, the product is suitable for various occasions that need to detect, calibrate and servo horizontal position.

Model Type	Photoelectricity Dual-axis Level Sensor
Model No.	EBL-D-01
Application	Lab Balance Leveling
Effective Angle Range	±0.05° - ± 2°
Accuracy	0.0003DEG - 0.005DEG
Output	Analog Voltage Signal
Working Voltage	D/C 3.3V
Working Current	10 mA
Working Temperature	-10ºC - +40ºC
Origin	China
Brand Name	Huide
Feature	Falling within one meter does not affect accuracy
Warranty	1 Year
MOQ	1 Piece
