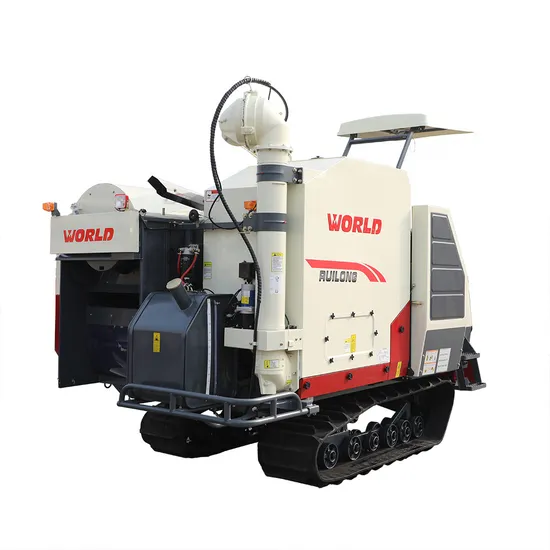

Agricultural Machinery 88HP Small Mini Rice Wheat Combine Harvester

Product Description

Feature:
1. Turbo engine power 88hp and Gear Box ZKB85 and HST 45cc are used for higher work efficiency.
2. Fuel tank capacity 130L can meet the whole day's work.
3. All direction grain discharging pipe brings convenience.
4. Grain Tank 1.4m3 can make sure of storing grain 800kg at least.
5. Rubber Track 500*90*51 and min ground clearance 32cm can make machines work faster in deep mud field.
6. New spring reel is optional.
Diameters as below:

Model		4LZ-4.0E
Type		Self-propelled full feeding
Dimension (Operation)	Length(mm)	4960
	Width(mm)	2890
	Height(mm)	2700
Weight(kg)		3200
Engine	Type	In-line, Water cool, Four-stroke, Direct Injection
	Power(HP)	88
	RPM(r/min)	2650
	Fuel tank(L)	130
Gear Box Model		Hydraulic Gear Box ZKB85
	HST	45CC
Walking Part	Track(mm)	500*90*51
	Track Gauge(mm)	1150
	Ground Clearance(mm)	320
Harvesting	Cutting Width(mm)	2100/2200
	Feeding Capacity (kg/s)	4
	Cutting Bar Lift	Hydraulic Control
Threshing	Type	Axial Flow Type with Beat Bars
	Threshing Cylinder (mm)	620*2000
Cleaning Type		Vibrating Sieves+ Centrifugal Fan
Discharging	Big Grain Tank (1.4m3)	Auto Unloading,360Degrees
Work efficiency	(ha./h)	0.37-0.66
Crops		Rice, Wheat, Soybean,Rapeseed

---
