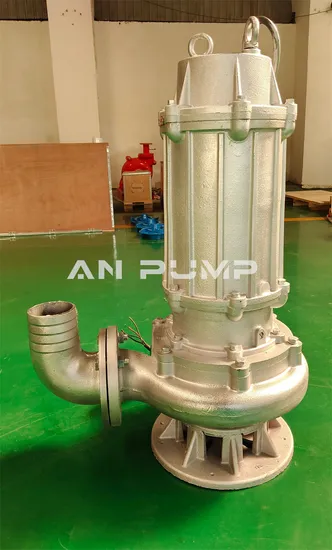

Non-Clog Centrifugal Submersible Sewage Pump Sand River Water

Product Description

Electric Vertical Centrifugal Submersible Sewage Water Pump

Product Description
ASW series submersible sewage pump are developed based on the advanced technical from abroad and have below advantages: hi-efficiency, circumvolution proof, lockage free, auto-coupling, hi-reliability and auto-control etc., especially they are suitable for pumping liquid with solids and long fibre.

ASW Submersible Sewage Pump Structure and Feature

1. Common type submerged sewage pump

This pump adopts closed-flow channel type impeller, impeller determines the shape and structure, it is suitable for pumping with long-fiber material and large solid particles of the medium.
2. Type submerged sewage pump with cutter

The introduction of the closed impeller is installed on an automatic shredding device, in the process of pumping medium used for crushing dry solids, paper, textile materials, and other long-fiber materials, to improve non-clogging pump performance.

3. Type submerged sewage pump with mixer

The spindle shaft is installed on an automatic mixing device; it makes the sediment and water of the sewage pond to fully mix so that to improve the ability of sewage pumps.
4. Type submerged sewage pump with cutter and mixer

Including automatic shredding and automatic Stirring.
5. Anti-flushing-type submerged sewage water pump

The sewage pump is installed an anti-flushing device, every time the pump started, the impeller produces high-pressure flow of water through the formation of a powerful anti-jet washing device emission, scouring pump pit, so that the water pump pit, generating a strong mixing, sludge and cover materials are mixed into a suspension-like, more easily discharged from the pump to prevent accumulation of silt rubbish caking, but also prevent the surface scum knot into the crust, so that pumping of the working environment greatly improved. But also form a high degree of oxygenation to eliminate the bad smell.
ASW Submersible Sewage Pump Application
(1) Waste water drainage in factories and industries.
(2) Drain system for municipal sewage plant
(3) Waste water drainage in residential area.
(4) Flood system drainage
(5) Waste water drainage in hospitals and hotels
(6) Municipal facilities and construction area
(7) Exploration and mining equipment
(8) Pump for biomass pool and agriculture irrigation
(9) River and Pond Dredging

ASW Submersible Sewage water Pump Materials

The ASW Submersible Sewage Pump is widely used for sewage, dirty water, drain, clean water, sea water and chemical processing. There are different material for the pump parts for different liquid pumped:

No.	Country	Cast iron	Ductile Iron	Stainless Steel 304	Stainless Steel 316
1	China	HT250	QT500-7	0Cr18Ni9	0Cr17Ni12Mo2
2	US	NO.35	70-50-05	SS304	SS316
3	Japan	FC250	FCD500	SUS304	SUS316
4	Germany	GG25	GGG50	X5CrNi18.9	X5CrNiMo18.10
5	Italy	G25	GS500-7
6	France	FGL250	FGS500-7	Z6CN18.09	Z6CND17.12
7	ISO	250	500-7	11	20,20a

Company Profile

Packaging & Shipping

FAQ

Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.

Q2. What markets do your pumps export to?
Europe, North & South America, South-East Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, America and Africa are gradually improving.

Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision and accurate model selection.

Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.

Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.

---
